White Side Awning 3m (9.84 ft)

Ref 15-738010
$599.00
In stock. Delivery within 2 to 3 days.
Color
Quantity

FREE DELIVERY
in southern Quebec.

Description

The 3 m (9.84 ft) side awning is optimized to enhance your VS collection pergola, offering increased comfort. It can be installed on all sides of freestanding models or on the front face of compatible attached models.



This ideal option for fully enjoying your acquisition provides protection against the sun, light wind, and offers significant privacy from prying eyes.



The awning fabric is made of honeycomb textilene, an innovative textile that allows for good ventilation, resists UV rays, and dries quickly. It unrolls manually and simply from top to bottom by grasping the lower crossbar, allowing you to adjust the awning to your desired height.



The aluminum frame integrates perfectly with the OMBREA bioclimatic pergola, maintaining its contemporary and aesthetic appeal.



THE PRODUCT + :



  • Protects against sunlight and light wind
  • Provides reasonable privacy from prying eyes
  • High-quality aluminum frame, robust, lightweight, rustproof, maintenance-free
  • Simple to assemble in less than 1 hour

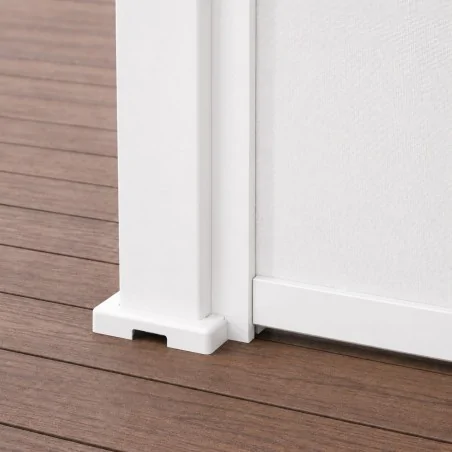

  • Awning rolls down vertically within the rails for maximum support

Technical Characteristics



Frame dimensions

279 x 10 x 233.5 cm (109.84 x 3.94 x 91.93 in)

Weight 25 kg (55.12 lb)
Material

Frame: aluminum

Fabric: textilene 30% polyester, 70% PVC weight 525g/m² light gray color

Aluminum thickness 1.2 - 2 mm (0.047 - 0.079 in)
Color

Anthracite gray - close to RAL 7015

White - close to RAL 9016

Screws and hardware

Stainless steel, galvanized steel

Roller/Box dimensions

279 x 10 x 10 cm (109.84 x 3.94 x 3.94 in)

Warranty 2 years
Information

2 side rails for sliding the awning

*The pergola is sold separately

** See the list of compatible pergolas in the "Our Advice" tab

Our advice

In case of heavy rain, strong winds, or snow, it is strongly recommended to retract the awning.



We advise purchasing the awning at the same time as your pergola, so you can install it together and then secure everything to the ground.

If you install the awning after the pergola has been fixed to the ground, we ask you to verify with a level that your pergola is perfectly straight and that the posts are properly positioned at 90 degrees before installing your awning.

The track cannot be fixed to the wall of your house; it is not possible to use the awning to attach it to the right or left sides of attached pergolas. In cases of heavy rain, strong winds, or snow, it is strongly recommended to retract the awning.



*Instructions available on request via the contact form



List of Compatible Pergolas

Reference

Designation

15-730359 Two-Tone Bioclimatic Pergola, 10x10 ft (3x3 m), Manual
15-728172 White Bioclimatic Pergola, 10x13 ft (3x4 m), Manual
15-728226 Two-Tone Bioclimatic Pergola, 10x13 ft (3x4 m), Manual
15-728127 Anthracite Bioclimatic Pergola, 10x13 ft (3x4 m), Manual
15-721104 Two-Tone Bioclimatic Pergola, 10x13 ft (3x4 m), Motorized
15-721005 Anthracite Bioclimatic Pergola, 10x13 ft (3x4 m), Motorized
15-721272 Two-Tone Bioclimatic Pergola, 13x13 ft (4x4 m), Motorized

Package Information

Dimensions Weight
Package 1

281 x 21 x 12 cm (110.63 x 8.27 x 4.72 in)

28 kg (61.73 lb)
