White Side Awning 4m (13.12 ft)

Ref 15-738034
$799.00
In stock. Delivery within 2 to 3 days.
Quantity

FREE DELIVERY
in southern Quebec.
  • 2 year warranty
  • Maximum quality - frame and blades 99% Aluminum

Description

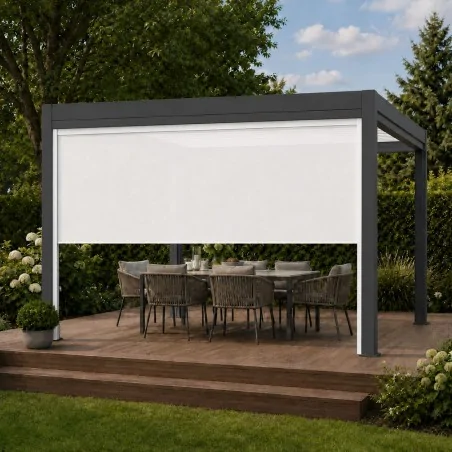

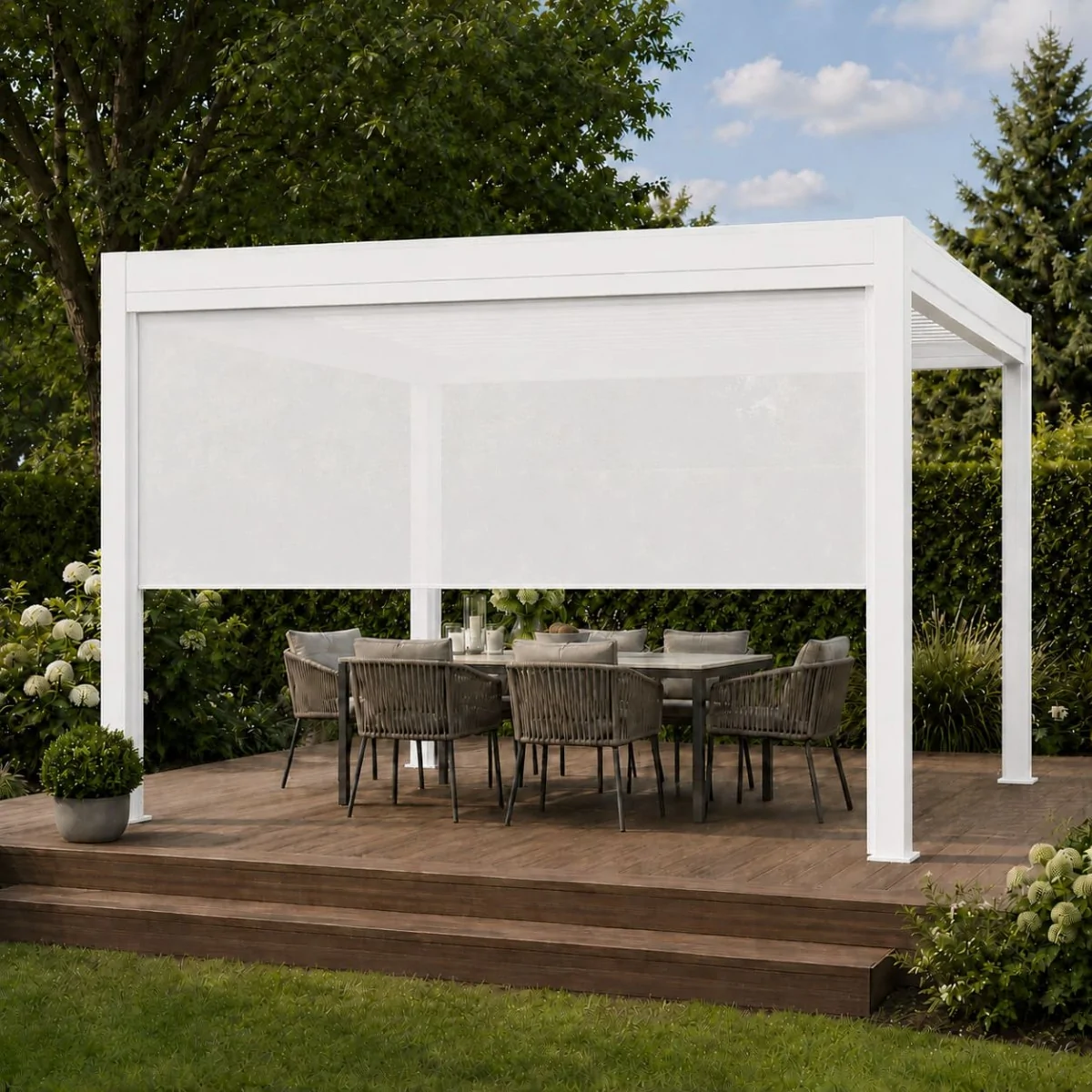

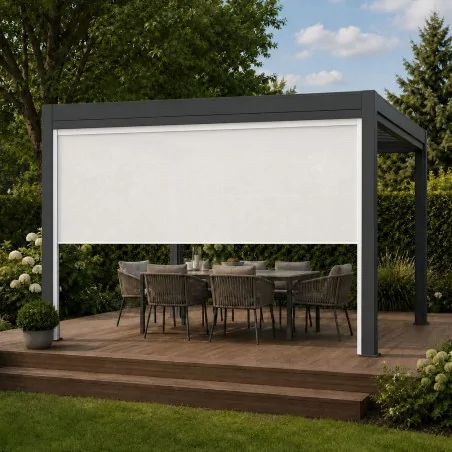

Ideal for dressing the 4 m (13.12 ft) sides of your Ombréa VS collection bioclimatic pergola, the 4 m side awning can be easily installed in less than an hour on freestanding models or on the front face of compatible attached pergolas.



Its honeycomb textilene fabric offers protection against the sun's rays and light breezes while maintaining adequate ventilation and providing privacy from prying eyes. This material has high UV resistance.

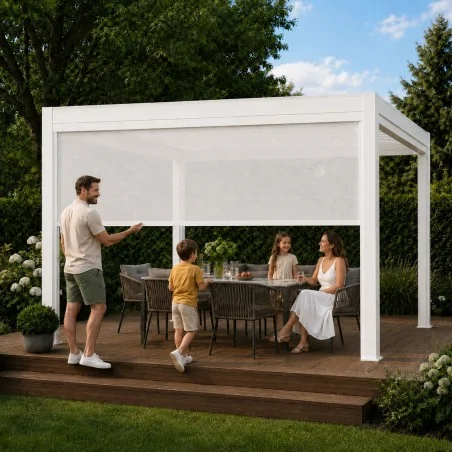

Manual handling allows you to roll your awning up or down, adjusting it to the height of your choice.

The aluminum frame integrates perfectly with the OMBREA VS bioclimatic pergola, maintaining its modern and stylish look.



Product Advantages



  • Protects against sunlight and light wind
  • Provides reasonable privacy from prying eyes
  • High-quality aluminum frame, robust, lightweight, rustproof, maintenance-free
  • Simple to assemble in less than 1 hour
  • Awning rolls down vertically within the rails for maximum support

Technical Characteristics

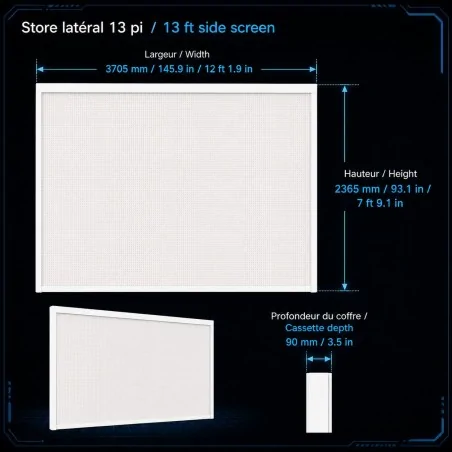

Frame dimensions

370.5 x 10 x 233.5 cm (145.87 x 3.94 x 91.93 in)

Weight 34 kg (74.96 lb)
Material

Frame: aluminum

Fabric: textilene 30% polyester, 70% PVC, light gray color

Aluminum thickness 1.2 - 2 mm (0.047 - 0.079 in)
Color

Anthracite gray - close to RAL 7015

White - close to RAL 9016

Screws and hardware

Stainless steel, galvanized steel

Roller/Box dimensions

370.5 x 10 x 10 cm (145.87 x 3.94 x 3.94 in)

Warranty 2 years
Information

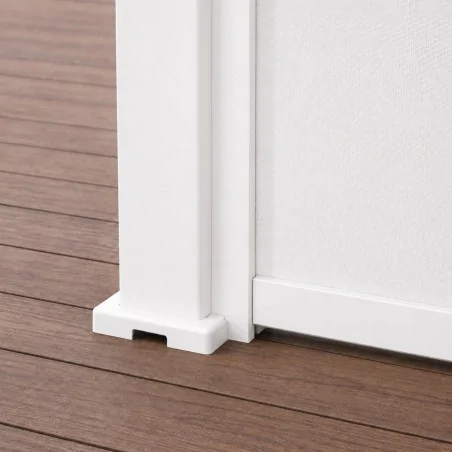

2 side rails for sliding the awning

*The pergola is sold separately

** See the list of compatible pergolas in the "Our Advice" tab

Our advice

In case of heavy rain, strong winds, or snow, it is strongly recommended to retract the awning.



We advise purchasing the awning at the same time as your pergola, so you can install it together and then secure everything to the ground.

If you install the awning after the pergola has been fixed to the ground, we ask you to verify with a level that your pergola is perfectly straight and that the posts are properly positioned at 90 degrees before installing your awning.



*Instructions available on request via the contact form



List of Compatible Pergolas

Reference

Designation

15-730359 Two-Tone Bioclimatic Pergola, 10x10 ft (3x3 m), Manual
15-728172 White Bioclimatic Pergola, 10x13 ft (3x4 m), Manual
15-728226 Two-Tone Bioclimatic Pergola, 10x13 ft (3x4 m), Manual
15-728127 Anthracite Bioclimatic Pergola, 10x13 ft (3x4 m), Manual
15-721104 Two-Tone Bioclimatic Pergola, 10x13 ft (3x4 m), Motorized
15-721005 Anthracite Bioclimatic Pergola, 10x13 ft (3x4 m), Motorized
15-721272 Two-Tone Bioclimatic Pergola, 13x13 ft (4x4 m), Motorized

Package Information

Dimensions Weight
Package 1

371 x 21 x 12 cm (146.06 x 8.27 x 4.72 in)

37 kg (81.57 lb)
