Anthracite Bioclimatic Pergola, 13x13 ft (4x4m), Motorized
Preorder
A deposit is required to confirm your order. The balance must be paid 2 weeks before the final delivery date. Estimated delivery time: 2 to 3 months.
Ref 15-721159
$6,499.00
Description
The motorized bioclimatic pergola Ombréa® of 13x13 ft (4x4 m) features a discreet electrical system. Its motor is installed in one of the side beams, and the wiring is hidden within the beams, emerging through a post to connect directly to your electrical installation. Made of 99% aluminum and capable of withstanding winds up to 62 mph (100 km/h), this pergola is of very high quality. The motor, IP 67 certified, is waterproof and also dust resistant. You can adjust the sunlight, shade, and ventilation with the double blades that can tilt up to 135°, controllable via a remote control. Extensions on the beams allow the blades, when open at 90°, to remain invisible from the outside. In case of rain, the pergola remains pleasant due to the waterproofness of its roof and a drainage system integrated into the posts. An included LED kit attaches directly to the structure's gutters and can be controlled via the Tuya Smart app, available on the App Store and Google Play.
This installation may require a building permit. It is recommended to inquire with your municipality for any necessary procedures.
For a pergola completely adapted to your needs, you can add accessories:
- Up to 2 blinds of 3 m (10 ft)
- Up to 2 blinds of 4 m (13 ft)
- Up to 6 slatted panels of 1 m (3 ft)
- Up to 6 slatted panels of 1.3 m (4 ft)
Technical Features
| Dimensions |
Total: 400 x 300 x 256 cm (13.12 x 9.84 x 8.40 ft) Overall with blades open (LxWxH)*: 399 x 307 x 256 cm (13.09 x 10.07 x 8.40 ft) Height under pergola: 248 cm (98 in) |
| Weight | 235.6kg (518 lbs) |
| Material |
Structure and roof: Aluminum Hardware: Stainless steel, galvanized steel, nylon, or plastic |
| Aluminum thickness | 1.4 - 1.8 mm (0.055 - 0.071 in) |
| Colors |

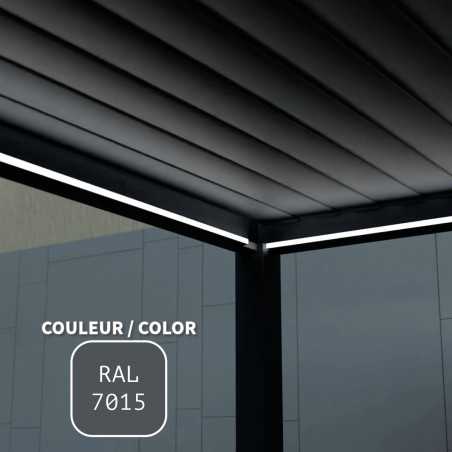

Anthracite gray and white - RAL 7015 and 9016 |
| Resistance |
Wind: 100 km/h (62 mph) Load: 50 kg/m² (10 lbs/ft²) |
| Post dimensions | 13.6 x 11.6 cm (5.35 x 4.57 in) |
| Beam dimensions | 19.5 x 9.5 cm (7.68 x 3.74 in) |
| Blade dimensions (LxWxH) | 377 x 16.6 x 3.8 cm (148.43 x 6.54 x 1.50 in) |
| Base plate dimensions | 16 x 16 cm (6 x 6 in) |
| Number of blades | 25 |
| Blade orientation | 135 degrees |
| Warranty | 5 years |
| Additional Information |
Ground fixing kit for the pergola included, 4 concrete screw anchors provided per post, dimensions: M10x80mm (0.4 x 3.1 in) Blinds and slatted panels are sold separately. Images are for illustration purposes only. |
Learn more
Thinking about setting up a pergola to enjoy your outdoor spaces all year round? Choose an Ombréa® freestanding bioclimatic pergola. Ideal for creating a relaxing space sheltered from the sun and bad weather, this installation also protects you from changing weather conditions.
What is a freestanding bioclimatic pergola?
Also known as a freestanding or island pergola, a freestanding pergola is an open shelter supported by at least four posts.
Description of the freestanding pergola
The freestanding pergola is a structure resting on four legs anchored directly to the ground. Unlike a wall-mounted pergola, which is attached to the house, this island-style shelter is completely independent. This means you can install it anywhere on your property to cover a patio, shelter a hammock by the pool, or even create a cozy space in the middle of the garden.
Due to its supporting pillars, a freestanding pergola is best suited for large spaces. With dimensions ranging from 10x10 ft (3x3 m) to 13x13 ft (4x4 m), the structure covers an area of about 161 square feet (approximately 15 square meters). This provides ample space to move around a table, set up outdoor furniture, or frequently entertain guests. Please note that installing a 13x10 ft (4x3 m) pergola may require a permit application with your local municipality.
Why install a freestanding bioclimatic pergola?
To enhance the comfort of your outdoor living space, opt for a freestanding bioclimatic pergola. Adding value to your property with its multiple configurations, this structure offers a wide range of customization options. Moreover, its aluminum construction ensures exceptional durability and long-lasting strength.
Our advice
It is essential to install the structure on a solid and flat base. It is advisable to mount it on a concrete slab. If you opt for creating concrete footings, we recommend dimensions of 10 inches by 10 inches (approximately 25 x 25 cm). In case of snowfall, it is preferable to keep the blades open to prevent any damage.
This pergola is likely subject to a building permit application. It is recommended to inquire with your municipality for any possible procedures.
Package Information
| Dimensions (LxWxH) | Weight | |
| PACKAGE 1 (POSTS AND HARDWARE) |
287 x 26.5 x 25 cm (113.0 x 10.4 x 9.8 in) |
51 kg (112.4 lbs) |
| PACKAGE 2 (UPPER FRAME AND HARDWARE) |
389.5 x 27 x 21.5 cm (153.3 x 10.6 x 8.5 in) |
39.4 kg (86.9 lbs) |
| PACKAGE 3 (SLATS AND HARDWARE) |
294.5 x 37.5 x 18.5 cm (115.9 x 14.8 x 7.3 in) |
55 kg (121.3 lbs) |
| PACKAGE 4 (SLATS) |
294.5 x 34.5 x 18.5 cm (115.9 x 13.6 x 7.3 in) |
51 kg (112.4 lbs) |
