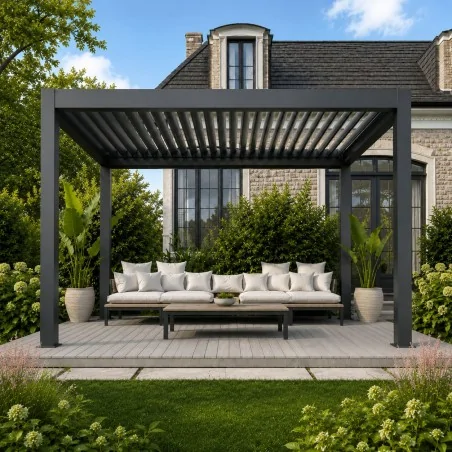

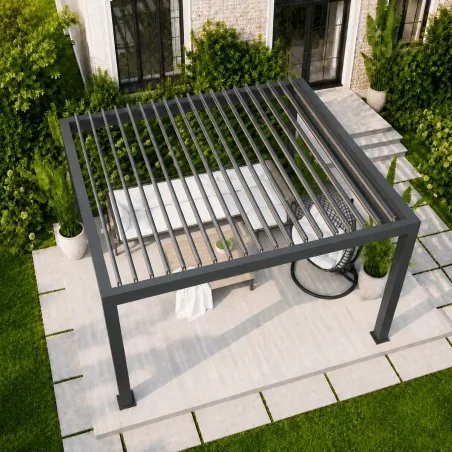

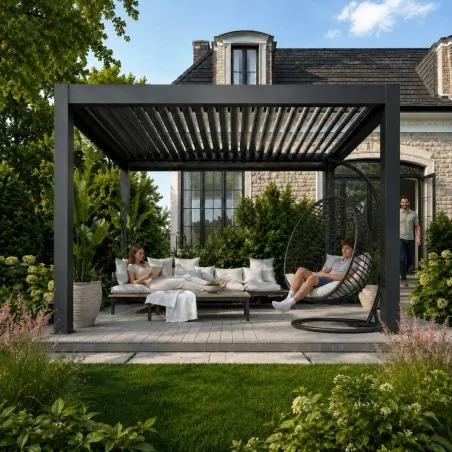

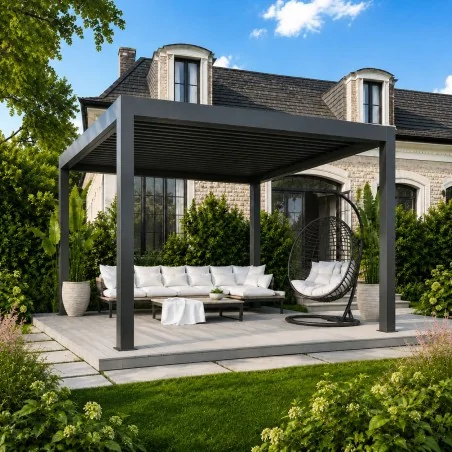

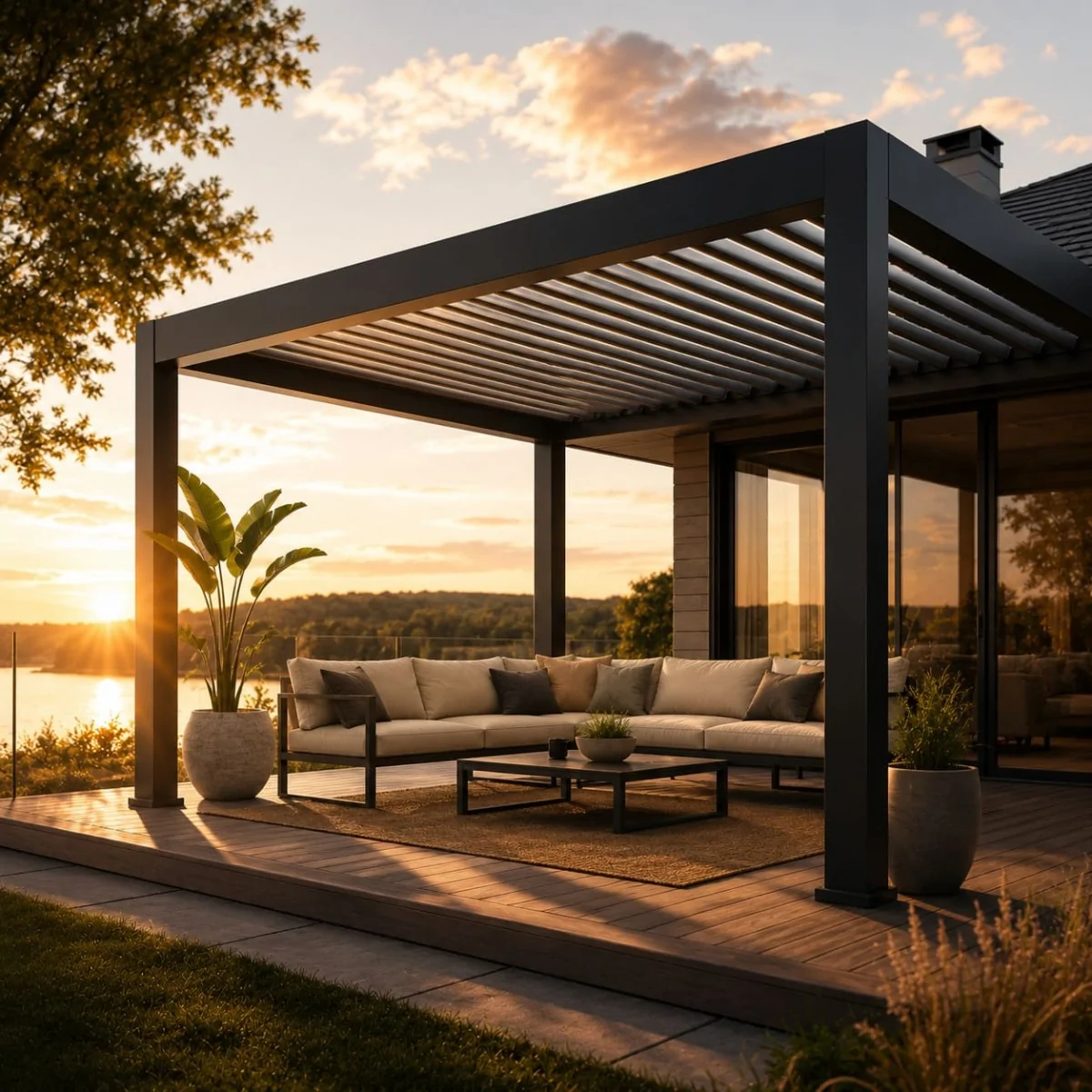

Anthracite Bioclimatic Pergola, 13x13 ft (4x4m), Motorized
Ref 15-721159
$6,499.00
Description

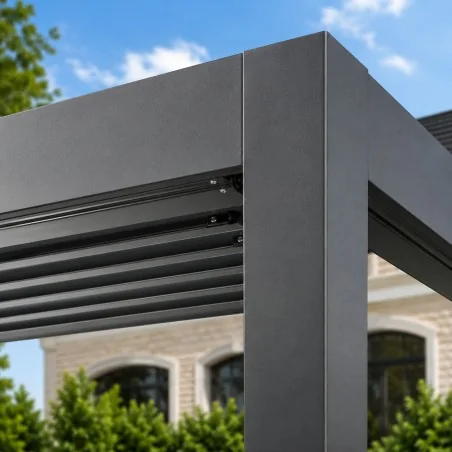

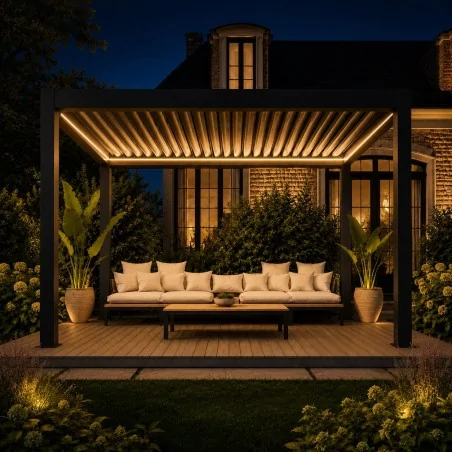

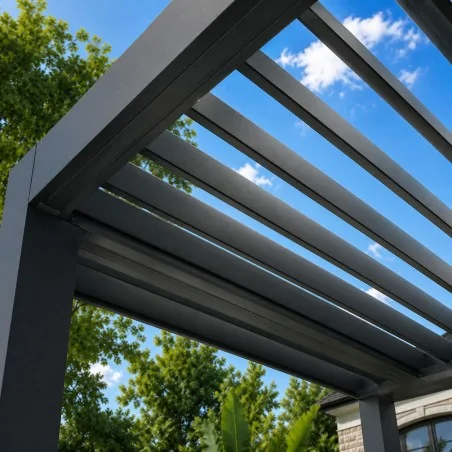

The Ombréa® 13 ft x 13 ft (approximately 4 m x 4 m) motorized bioclimatic pergola is equipped with a discreet electrical system. Its motor is installed inside one of the side beams, and the wiring is concealed within the beams and exits through a post to connect directly to your electrical supply (male electrical plug not included). Made of 99% aluminum and able to withstand winds up to 62 mph (100 km/h), this pergola is of very high quality. The motor, IP67 certified, is waterproof and also dust-resistant. You can adjust sunlight, shade, and ventilation thanks to the double louvers that tilt up to 135°, controlled with a remote. Beam extensions allow the louvers, when opened to 90°, to remain invisible from the outside. In case of rain, the pergola remains comfortable thanks to the watertight roof and an integrated drainage system inside the posts. An included LED kit attaches directly to the structure’s gutters and can be controlled via the Tuya Smart app, available on the App Store and Google Play.
This installation may require a building permit. It is recommended to check with your municipality regarding any required steps.

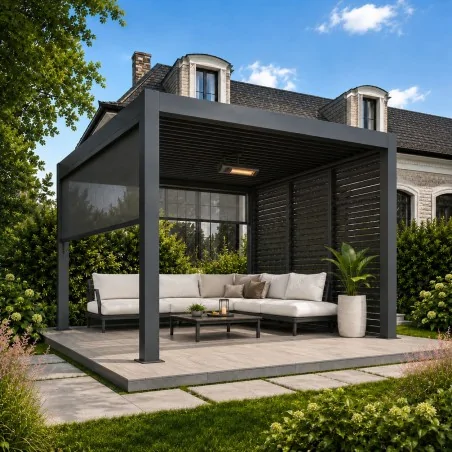

To tailor the pergola fully to your needs, you can add accessories:
- Up to 4 blinds of 4 meters (13 ft)
- louvered panels of 1 meter (3 ft)
- louvered panels of 1.3 meters (4 ft)
Technical Specifications
| Dimensions (W x D x H) |
Overall: 400 x 400 x 256 cm (13.12 x 13.12 x 8.40 ft) Overall incl. overhang: 403 x 403 x 256 cm (13.22 x 13.22 x 8.40 ft) Clear height under pergola: 248 cm (97.64 in) |
| Weight | 235.6 kg (519.41 lbs) |
| Material |
Structure and roof: Aluminum Fasteners and hardware: Steel (dacromet), nylon, or plastic |
| Aluminum thickness | 1.4 - 1.8 mm (0.055 - 0.071 in) |
| Colors (RAL) |
Color 1: Anthracite Grey - RAL 7015 Color 2: Anthracite Grey and White - RAL 7015 and 9016 |
| Resistance |
Wind: 100 km/h (62.14 mph) Load: 50 kg/m² (10.24 lbs/ft²) |
| Post dimensions | 13.6 x 13.6 cm (5.35 x 5.35 in) |
| Beam dimensions | 19.5 x 9.5 cm (7.68 x 3.74 in) |
| Double louver dimensions (L x W x H) | 377 x 16.6 x 3.8 cm (148.43 x 6.54 x 1.50 in) |

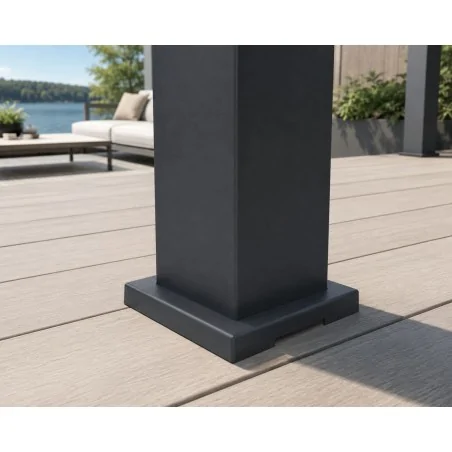

| Floor mounting base plate dimensions | 16 x 16 cm (6.30 x 6.30 in) |
| Number of double louvers | 25 |
| Louver tilt | 135 degrees |
| Warranty | Up to 10 years (10 years structure, 5 years paint, 2 years accessories, and 2 years motor) |
| Information |
Floor anchoring kit included: 4 screw-in concrete anchors are provided per post, size: M10 x 80 mm (0.39 x 3.15 in) Blinds and louvered wind panels are sold separately. Photos are non-contractual. Male electrical plug is not included. |
Learn more
Thinking about setting up a pergola to enjoy your outdoor spaces all year round? Choose an Ombréa® freestanding bioclimatic pergola. Ideal for creating a relaxing space sheltered from the sun and bad weather, this installation also protects you from changing weather conditions.
What is a freestanding bioclimatic pergola?
Also known as a freestanding or island pergola, a freestanding pergola is an open shelter supported by at least four posts.
Description of the freestanding pergola
The freestanding pergola is a structure resting on four legs anchored directly to the ground. Unlike a wall-mounted pergola, which is attached to the house, this island-style shelter is completely independent. This means you can install it anywhere on your property to cover a patio, shelter a hammock by the pool, or even create a cozy space in the middle of the garden.
Due to its supporting pillars, a freestanding pergola is best suited for large spaces. With dimensions ranging from 10x10 ft (3x3 m) to 13x13 ft (4x4 m), the structure covers an area of about 161 square feet (approximately 15 square meters). This provides ample space to move around a table, set up outdoor furniture, or frequently entertain guests. Please note that installing a 13x10 ft (4x3 m) pergola may require a permit application with your local municipality.
Why install a freestanding bioclimatic pergola?
To enhance the comfort of your outdoor living space, opt for a freestanding bioclimatic pergola. Adding value to your property with its multiple configurations, this structure offers a wide range of customization options. Moreover, its aluminum construction ensures exceptional durability and long-lasting strength.
Our advice
It is essential to install the structure on a solid and flat base. It is advisable to mount it on a concrete slab. If you opt for creating concrete footings, we recommend dimensions of 10 inches by 10 inches (approximately 25 x 25 cm). In case of snowfall, it is preferable to keep the blades open to prevent any damage.
This pergola is likely subject to a building permit application. It is recommended to inquire with your municipality for any possible procedures.
Package Information
| Dimensions (LxWxH) | Weight | |
| PACKAGE 1 (POSTS AND HARDWARE) |
287 x 26.5 x 25 cm (113.0 x 10.4 x 9.8 in) |
51 kg (112.4 lbs) |
| PACKAGE 2 (UPPER FRAME AND HARDWARE) |
389.5 x 27 x 21.5 cm (153.3 x 10.6 x 8.5 in) |
39.4 kg (86.9 lbs) |
| PACKAGE 3 (SLATS AND HARDWARE) |
294.5 x 37.5 x 18.5 cm (115.9 x 14.8 x 7.3 in) |
55 kg (121.3 lbs) |
| PACKAGE 4 (SLATS) |
294.5 x 34.5 x 18.5 cm (115.9 x 13.6 x 7.3 in) |
51 kg (112.4 lbs) |
