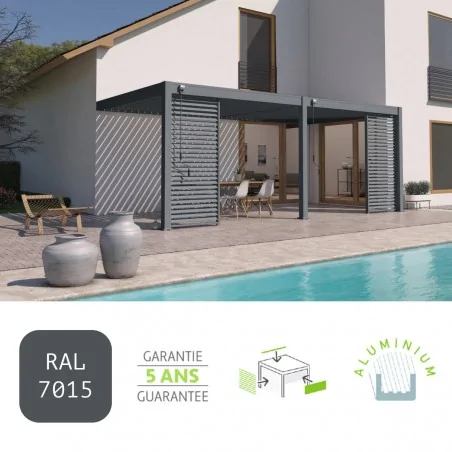

Anthracite Wall-Mounted Bioclimatic Pergola 10x20 ft (3x6 m) manual
Preorder
A deposit is required to confirm your order. The balance must be paid 2 weeks before the final delivery date. Estimated delivery time: 2 to 3 months.
Ref 15-730380
$5,799.00
Payment in 3 times without fees
3 x 2222.47 $
Description
Enjoy a premium outdoor space that's easy to install with 2 or 3 people with the Ombréa® 10 x 20 ft (3 x 6 m) bioclimatic pergola from the VS collection. Designed to extend your patio, restaurant, or hotel, it enhances your outdoor area while protecting you from the elements, giving you complete peace of mind.
The 38 double louvers are adjustable up to 135°, allowing you to control brightness, shade, and ventilation manually with two crank handles.
When the roof is closed, it provides optimal waterproofing, directing rainwater through the posts for efficient drainage.
Its aluminum construction ensures exceptional durability and resistance to winds up to 62 mi/h (100 km/h). The roof can support a load of up to 10.2 lb/ft² (50 kg/m²).
ADVANTAGES:
- Creates a true extension of your home
- Made of aluminum: rust-free and maintenance-free
- Exclusive modern design by Ombréa
- Louvers are hidden when opened at 90°
- Compatible with a wide range of accessories
Technical Specifications
| Dimensions (L x W x H) |
19.6 x 9.6 x 8.4 ft (598 x 293 x 257 cm) Overall: 19.7 x 9.8 x 8.4 ft (600 x 300 x 257 cm) Clearance height: 8.1 ft (248 cm) |
| Weight | 529 lb (240 kg) |
| Material |
Structure and roof: Aluminum Fasteners and hardware: Steel (Dacromet coating), nylon, or plastic |
| Aluminum thickness | 0.05 - 0.07 in (1.4 - 1.8 mm) |
| Color options |
Anthracite gray - RAL 7015 White - RAL 9016 Anthracite gray and white - RAL 7015 & 9016 |
| Resistance |
Wind: 62 mi/h (100 km/h) Load: 10.2 lb/ft² (50 kg/m²) |
| Post dimensions | 4.6 x 4.6 in (11.6 x 11.6 cm) |
| Beam dimensions (L x W) | 6 x 3 in (15.3 x 7.5 cm) |
| Double louver dimensions (L x W x H) | 108.7 x 6.7 x 1.2 in (276 x 17 x 3 cm) |
| Ground mounting plate dimensions | 6.3 x 6.3 in (16 x 16 cm) |
| Number of double louvers | 38 |
| Warranty | 5 years |
| Additional information |
Ground anchoring kit included: each post comes with 4 screw-in concrete anchors (size: M10 x 80 mm). Shades and louvered panels sold separately. Photos for reference only. |
Our advice
The Ombréa 10 x 20 ft (3 x 6 m) wall-mounted bioclimatic pergola must be installed on a level surface, ideally on a concrete slab.
If you are creating concrete footings, we recommend dimensions of 10 x 10 in (25 x 25 cm).
The hardware included in the package is designed for installation on solid walls. For installation on hollow cinder block walls, you will need to use Molly anchors, nail-in anchors, or self-drilling anchors.
If you wish to purchase a shade or louvered panel, we recommend ordering and installing it at the same time as your pergola. You can then secure the entire structure to the ground.
If your pergola is already anchored to the ground, it must be perfectly straight (check with a level), and the posts should be positioned at 90° to allow for the easy addition of accessories.
In winter, it is recommended to keep the louvers open in case of snowfall or strong winds.
Depending on your municipality, installing this pergola may require a permit. We advise you to check with your local authorities for the necessary procedures.
For a complete pergola tailored to your needs, you can add accessories:
- Up to 4 shades of 10 ft (3 m) (compatible with the front and sides)
- Up to 12 louvered panels of 3.3 ft (1 m)
- 4 ft (1.2 m) louvered panel (for partial closure; this product is available in limited quantities while supplies last)
- 4.3 ft (1.3 m) louvered panel (for partial closure)
Package Information
| Dimensions (L x W x H) | Weight | |
| Package 1 | 115.7 x 15.1 x 5.2 in (294 x 38.3 x 13.3 cm) | 116.8 lb (53 kg) |
| Package 2 | 123.2 x 17.3 x 8.3 in (313 x 44 x 21.2 cm) | 121.3 lb (55 kg) |
| Package 3 | 112 x 14.8 x 7.2 in (284.5 x 37.7 x 18.3 cm) | 116.8 lb (53 kg) |
| Package 4 | 112 x 14.8 x 7.2 in (284.5 x 37.7 x 18.3 cm) | 116.8 lb (53 kg) |
| Package 5 | 112 x 13.8 x 7.2 in (284.5 x 35 x 18.3 cm) | 108 lb (49 kg) |
