Essential Package 10x13 white - Manual + 1 blind + 1 privacy screen + 1 heater
Ref 26-728172
$5,199.00
Description

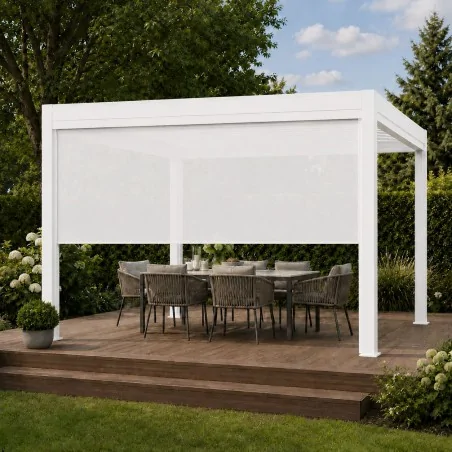

The Ombréa® Essential Package combines a VS 10x13 bioclimatic pergola, a 4 m side screen, a 1 m privacy panel, and an outdoor heater to create a comfortable, stylish, and adaptable outdoor space. The accessories included in this package are compatible with the pergola offered in this bundle.
Made of aluminum, the pergola blends easily with a home or commercial setting and delivers excellent weather resistance, with wind resistance up to 100 km/h (62 mph). Thanks to its double louvers adjustable up to 135° (crank operation), it is possible to manage sunlight, shade, and ventilation throughout the day. In rainy weather, the area under the pergola stays dry: the roof is watertight and water is drained through the posts via an integrated drainage system.
The 4 m anthracite side screen completes the setup by adding protection and privacy. Its honeycomb Textilene fabric filters sunlight, blocks light breezes while maintaining adequate ventilation, and provides good UV resistance. Manual operation makes it easy to adjust the screen height as needed.
The 1 m (3.28 ft) horizontal-louver privacy panel provides side protection and reduces overlooking while maintaining good light and natural ventilation. As an independent element, up to 3 panels can be installed side by side to customize the closure of one side. A fixed accessory (non-sliding) with non-adjustable louvers, it also provides additional protection from the elements.
The outdoor heater extends the comfort of your pergola when temperatures drop. Easy to install on Ombréa pergolas and carports, its carbon heating lamp provides gentle, instant warmth—ideal for enjoying your outdoor space even on cooler days. Compact and discreet, it adds everyday comfort without taking up space. Built for outdoor use, it helps you enjoy your terrace longer, from spring through fall.
PRODUCT + :
- Complete bundle: pergola + side screen + privacy panel + heater, fully compatible
- Louvers adjustable up to 135° by crank (shade, sun, ventilation)
- Watertight roof with integrated drainage inside the posts
- Side screen: sun protection, light breeze reduction, reasonable privacy
- 1 m privacy panel: reduced overlooking and side protection
- Outdoor heater: gentle, instant warmth, heated area approx. 10–15 m² (107.64–161.46 ft²)
- Low maintenance: no fuel, no smoke, no odor
- IP65 rating (water- and dust-resistant)
- Robust, durable, lightweight, maintenance-free aluminum structure
Technical Specifications – VS 10x13 Bioclimatic Pergola
| Dimensions |
394 x 303 x 257 cm (12.9 x 9.9 x 8.4 ft) Overall: 397 x 303 x 257 cm (13 x 9.9 x 8.4 ft) Clear height under pergola: 248 cm (8.1 ft) |
| Weight | 184.5 kg (406.8 lb) |
| Material |
Structure and roof: Aluminum Fasteners and hardware: Stainless steel, galvanized steel, nylon, or plastic |
| Aluminum thickness | 1.4 - 1.8 mm |
| Colors |
Color 1: Anthracite gray - RAL 7015 Color 2: White - RAL 9016 Color 3: Anthracite gray and white - RAL 7015 and 9016 |
| Resistance |
Wind: 100 km/h (62 mph) Load: 50 kg/m² |
| Post dimensions | 11.6 x 11.6 cm (4.6 x 4.6 in) |
| Beam dimensions | 15.3 x 7.5 cm (6 x 3 in) |
| Double louver dimensions | 285 x 17 x 3 cm (112.2 x 6.7 x 1.2 in) |
| Floor mounting base plate dimensions | 16 x 16 cm (6.3 x 6.3 in) |
| Number of double louvers | 25 |
| Warranty | 10 years |
| Information |
Floor anchoring kit included: 4 screw-in concrete anchors supplied per post, size: 10 x 80 mm (0.39 x 3.15 in) Non-contractual photos |
Technical Specifications – 4 m (13.12 ft) Anthracite Side Screen
| Frame dimensions |
370.5 x 10 x 233.5 cm (145.87 x 3.94 x 91.93 in) |
| Weight | 34 kg (74.96 lb) |
| Material |
Frame: Aluminum Fabric: Textilene 30% polyester, 70% PVC (light gray) |
| Aluminum thickness | 1.2 - 2 mm (0.047 - 0.079 in) |
| Colors |
Anthracite gray - close to RAL 7015 White - close to RAL 9016 |
| Fasteners and hardware |
Stainless steel, galvanized steel |
| Roller / cassette dimensions |
370.5 x 10 x 10 cm (145.87 x 3.94 x 3.94 in) |
| Warranty | 2 years |
| Information |
Manual screen that rolls down vertically into the rails, with 2 side rails included |
Technical Specifications – 1 m (3.28 ft) Horizontal-Louver Privacy Panel
| Dimensions |
93 x 10 x 233.5 cm |
| Weight |
15 kg (33.1 lb) |
| Slat dimensions (L x D x H) |
88.5 x 7.5 x 1.5 cm |
| Adjustable foot height (min-max) |
28.5 - 46 mm |
| Material |
Frame: Aluminum |
| Aluminum thickness | 1 - 1.3 mm |
| Colors |
Anthracite gray - close to RAL 7015 White - close to RAL 9016 |
| Fasteners and hardware |
Stainless steel, galvanized steel |
| Warranty |
2 years |
Technical Specifications – Outdoor Heater (Carbon Heating Lamp)
| Frame dimensions |
108.3 x 14 x 12 cm (42.64 x 5.51 x 4.72 in) |
| Weight |
5.4 kg (11.90 lb) |
| Material |
Frame: Aluminum Carbon heating lamp |
| Aluminum thickness |
1.2 - 2 mm (0.05 - 0.08 in) |
| Color |
Anthracite gray - close to RAL 7015 |
| Fasteners and hardware |
Stainless steel, galvanized steel |
| Power |
3000 W |
| Voltage |
110 V - 15 A |
| Warranty |
2 years |
| Information |
IP65 rating (water- and dust-resistant) |
Important information
- The accessories (side screen, privacy panel, and heater) included in this package are compatible with the pergola in this bundle.
- Non-contractual photos.
Our advice
The Ombréa® Essential Package (VS 10x13 pergola + 4 m side screen + 1 m privacy panel + outdoor heater) must be installed on a perfectly level surface, ideally on a concrete slab.
If you plan to pour concrete footings, we recommend a size of 25 x 25 cm (approximately 9.8 x 9.8 inches).
Important installation tip: for this package, it is recommended to install the side screen, the privacy panel, and the heater at the same time as the pergola, before the final anchoring to the ground. This makes it easier to align everything and ensures a perfectly square installation.
If the pergola is already anchored to the ground, it must be perfectly straight (level-checked) and the posts must be positioned at 90° to install the accessories without stress.
Side screen: in case of heavy rain, sustained winds, or snow, it is strongly recommended to retract the screen.
Pergola: in winter, it is recommended to leave the louvers open in case of snowfall and strong winds.
Privacy panel: the panel is a fixed element (non-sliding, non-adjustable louvers). It is independent and can be positioned where desired. Up to 3 panels can be installed side by side to close a 3 m side.
Please note that on a wall-mounted pergola, when fully closing one side with 3 panels, there will be an empty gap of approximately 11.6 cm (4.6 in), corresponding to the width of a post between the last panel and the wall.
Outdoor heater: install the heater above your dining area or lounge space to create a comfortable heat zone. For best results, combine it with a side screen or privacy panels to reduce drafts and retain warmth. Adjust usage based on conditions (full power on cooler evenings, lighter comfort when needed).
For safety and performance, make sure the heater is securely mounted and connected to a suitable 110 V / 15 A power supply, and follow the installation instructions provided.
This pergola may be subject to a building permit application. It is recommended to check the applicable requirements with your municipality.
To further customize your pergola, you can add other accessories compatible with the VS collection:
- Up to 2 screens of 3 meters (approximately 9.8 feet)
- Up to 2 screens of 4 meters (approximately 13.1 feet)
- Up to 6 louvered privacy panels of 1 meter (approximately 3.3 feet)
- Up to 6 louvered privacy panels of 1.3 meters (approximately 4.3 feet)
- 1.2-meter louvered panel (for partial closure, available in limited quantities while supplies last)
Finally, if you install accessories after anchoring to the ground, we recommend checking everything with a level: pergola perfectly level, posts square and positioned at 90°.
Package Information
This Ombréa® Essential Package includes 3 products (pergola + side screen + privacy panel). The packages listed below correspond to the original packaging for each item.
VS 10x13 Bioclimatic Pergola – Package Information
| Dimensions (L x W x H) | Weight | |
| Package 1 (posts and hardware) |
265 x 26.5 x 25 cm (104.3 x 10.4 x 9.8 in) |
40.5 kg (89.3 lb) |
| Package 2 (top frame and hardware) |
390 x 27 x 21.5 cm (153.5 x 10.6 x 8.5 in) |
41 kg (90.4 lb) |
| Package 3 (louvers and hardware) |
302 x 35.5 x 19 cm (118.9 x 14.0 x 7.5 in) |
60 kg (132.3 lb) |
| Package 4 (louvers) |
302 x 35.5 x 19 cm (118.9 x 14.0 x 7.5 in) |
63 kg (138.9 lb) |
4 m Anthracite Side Screen – Package Information
| Dimensions (L x W x H) | Weight | |
| Package 1 |
371 x 21 x 12 cm (146.06 x 8.27 x 4.72 in) |
37 kg (81.57 lb) |
1 m Horizontal-Louver Privacy Panel – Package Information
| Dimensions (L x W x H) | Weight | |
| Package 1 |
242 x 24.5 x 12.3 cm (95.28 x 9.65 x 4.84 in) |
17 kg (37.48 lb) |
Practical tip: plan for 2 people to handle the longest and heaviest packages, and check delivery-site accessibility (stairs, narrow passageways, etc.).
