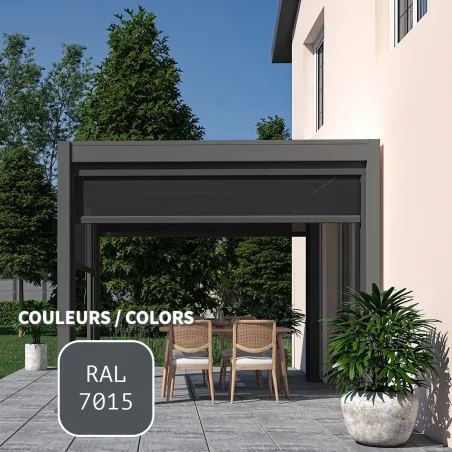

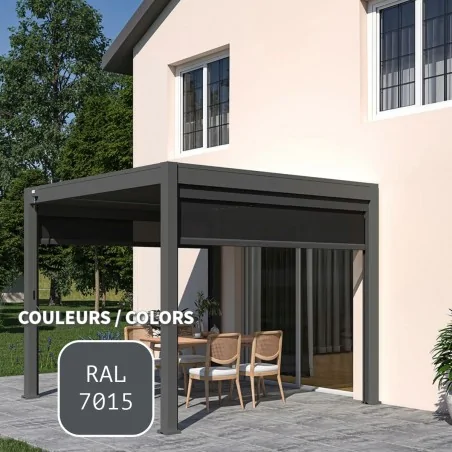

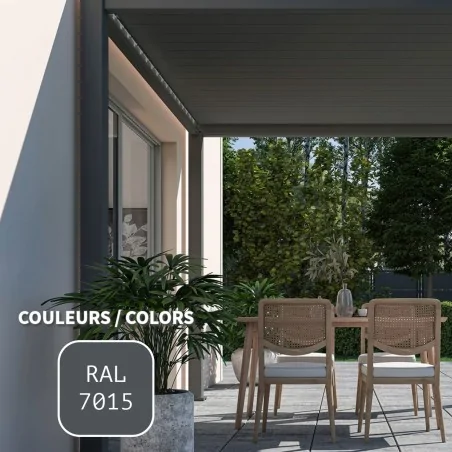

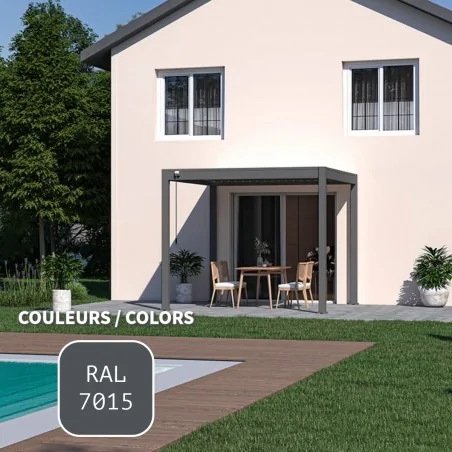

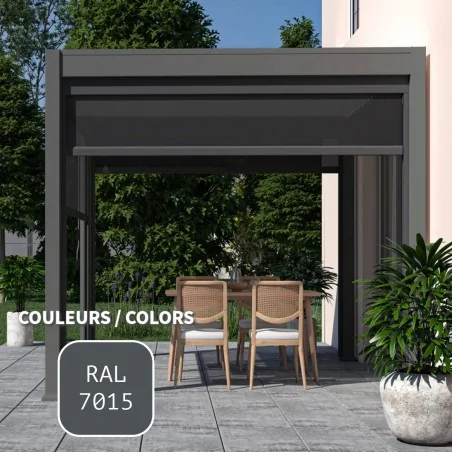

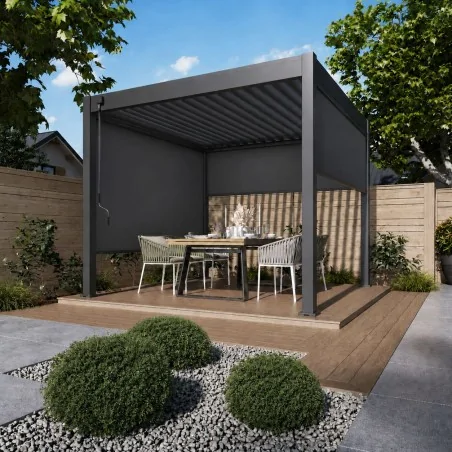

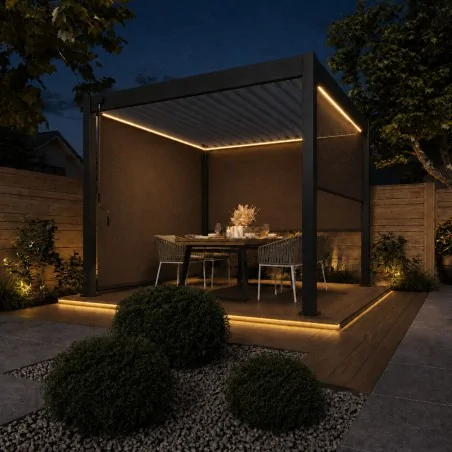

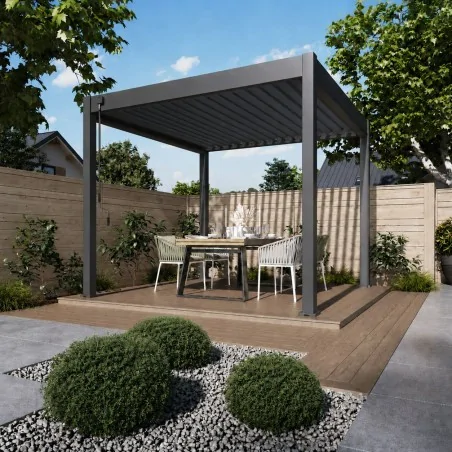

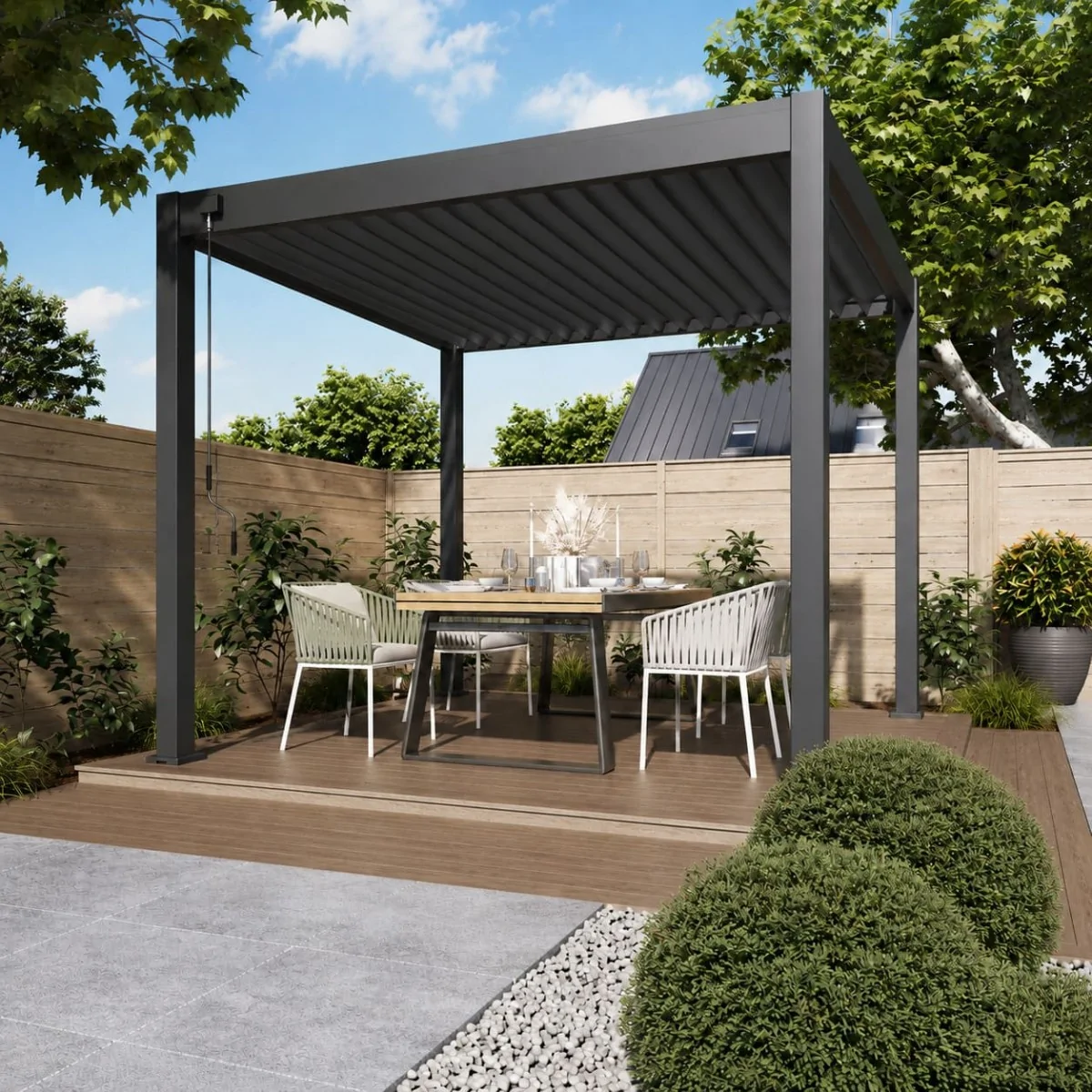

Charcoal Bioclimatic Pergola 10x10 ft (3x3 m) Manual

Ref 15-728028

$2,999.00

Quantity

FREE DELIVERY

in southern Quebec.

Description

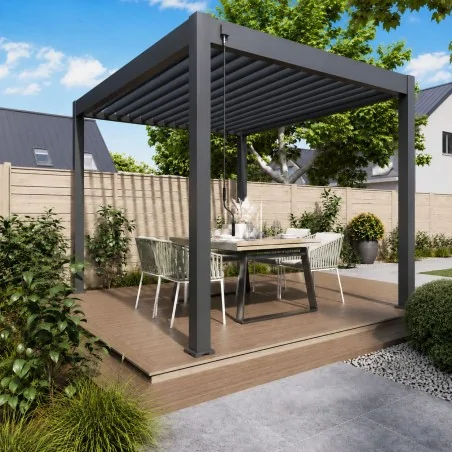

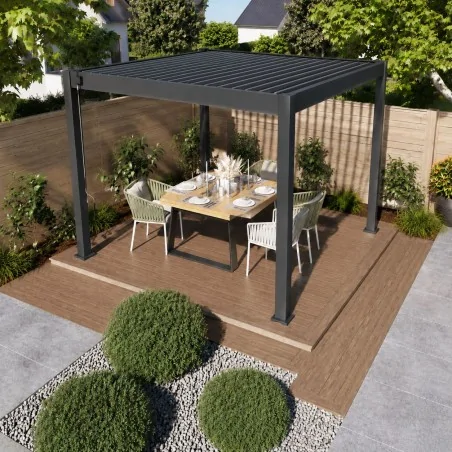

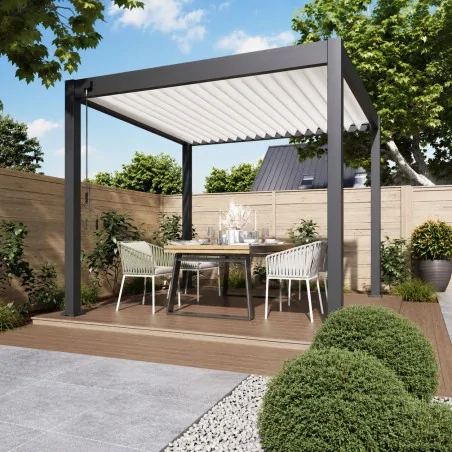

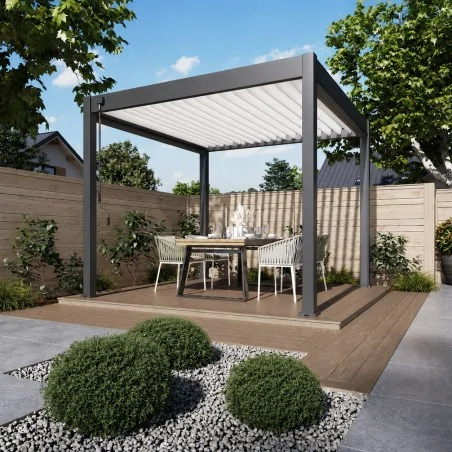

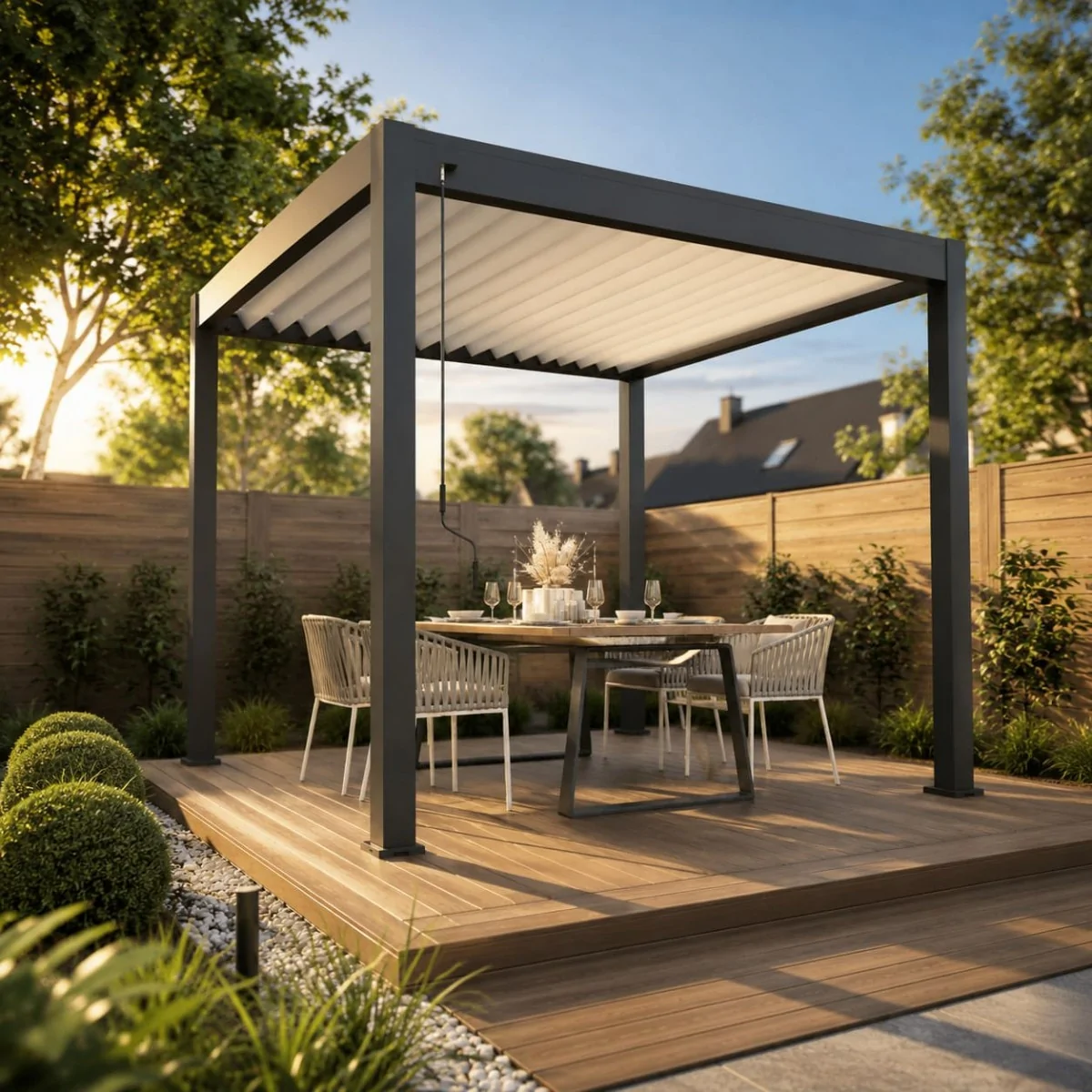

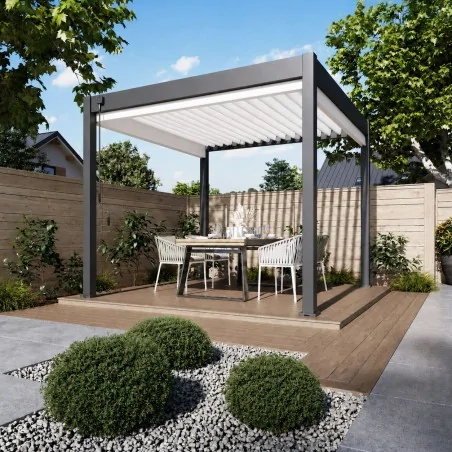

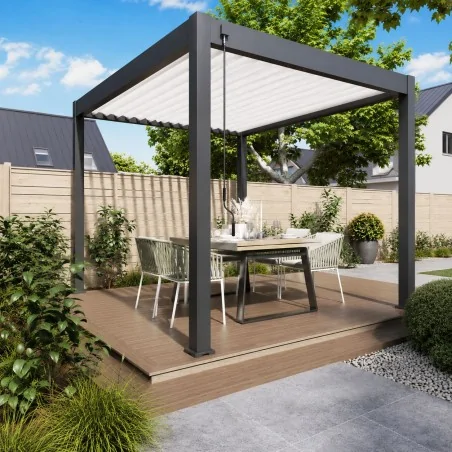

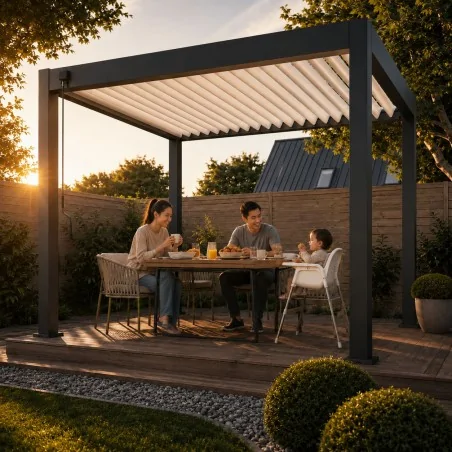

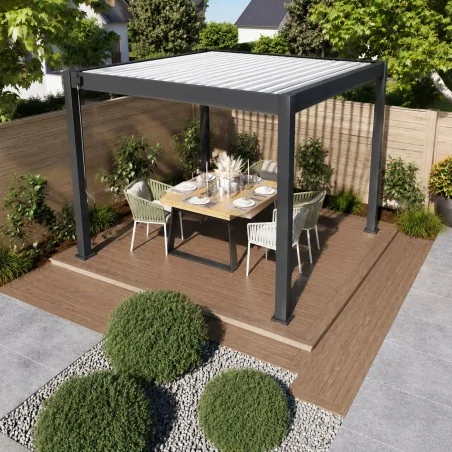

Designed to adapt to weather conditions, the Ombréa® VS 10 feet x 10 feet (approximately 3x3 meters) bioclimatic pergola with double adjustable slats extends your outdoor season.

It allows you to enjoy the sun or a shaded spot and protects you from rain. Its perfectly waterproof roof can be opened or closed thanks to its manually tiltable slats using a crank. Water is drained through the posts by an innovative integrated drainage system.

Made from high-quality aluminum, the Ombréa® pergola is an extremely robust product that requires very little maintenance. It's the perfect extension to enjoy your outdoor space, patio, terrace, or to shelter a Spa & Jacuzzi, all while offering a contemporary look.

As a reminder, there are two categories of pergolas: wall-mounted and freestanding models. While the former must be supported by one side of the façade, freestanding pergolas are completely independent. Thus, you can install it anywhere to provide shade on the terrace, over an outdoor kitchen, or even above a hammock near the pool.

THE + PRODUCTS:

Protects from rain, water evacuation system through drainage inside the posts
Adjustable slats up to 135° to choose between sunlight, shade, or a slight breeze
Made from high-quality, sturdy, lightweight aluminum, does not rust, maintenance-free
Slats are not visible when opened to 90°

Technical Characteristics

Dimensions	9 feet 11 inches x 9 feet 11 inches x 8 feet 5 inches (approximately 302 x 302 x 257 cm) Overall: 10 feet 1 inch x 10 feet 1 inch x 8 feet 5 inches (approximately 308 x 308 x 257 cm) Height under pergola: 8 feet 2 inches (approximately 248 cm)
Weight	332.9 lbs (approximately 151 kg)
Material	Structure and roof: Aluminum Screws and hardware: Stainless steel, galvanized steel, nylon, or plastic
Aluminum thickness	0.055 - 0.071 inch (approximately 1.4 - 1.8 mm)
Colors	Color 1: Anthracite grey - RAL 7015 Color 2: White - RAL 9016
Resistance	Wind: 62 mph (approximately 100 km/h) Load: 10.2 lbs/ft² (approximately 50 kg/m²)
Post dimensions	4.6 x 4.6 inches (approximately 11.6 x 11.6 cm)
Beam dimensions	6 x 3 inches (approximately 15.3 x 7.5 cm)
Double slat dimensions	9 feet 4 inches x 6.7 inches x 1.2 inches (approximately 285 x 17 x 3 cm)
Ground mounting plate dimensions	6.3 x 6.3 inches (approximately 16 x 16 cm)
Number of double slats	19
Warranty	5 years
Information	Pergola ground mounting kit included, 4 concrete screw anchors provided per post, dimensions: 0.39x3.15 pouces (10x80mm) Blinds and slatted panels are sold separately. Images are for illustrative purposes only

TO LEARN MORE

Why Choose an Ombréa® 10x10 ft (approximately 3x3 m) Bioclimatic Pergola?

Do you want to spend more time outdoors to enjoy sunny days or summer evenings? Consider setting up a 10x10 ft bioclimatic pergola. At Ombréa, you will find the VS collection installation you need. We offer freestanding shelter models measuring 10x10 ft (approximately 3x3 m) that can perfectly adapt to small spaces. Whether installed on the terrace or in a corner of the garden, this arrangement will protect you from the whims of the weather.

10x10 ft Freestanding Bioclimatic Pergola: Its Specifics

The pergola is among the most appreciated outdoor setups. Besides being easy to install, it is also accessible to all budgets. Apart from its affordable purchase price, its installation does not necessarily require a professional. Yet, this setup effectively protects against bad weather and sunlight.

Why Opt for a 10x10 ft Pergola?

The real advantage of our 10x10 ft freestanding pergola lies in its dimensions. Extending 10 ft in length and 10 ft in width, it can cover a floor area of 97 sq ft (approximately 9 m²). This size is perfect for creating an intimate corner or arranging the space of your choice.

Indeed, a 97 sq ft area (approximately 9 m²) is comfortable enough to accommodate a barbecue, a bar, a jacuzzi, or simply a relaxation shelter. It also offers ample space for 4 people to dine around a small table.

Why Set Up a 10x10 ft Bioclimatic Pergola?

Designed to protect you in any season, the 10x10 ft bioclimatic pergola shelters you from climate changes. Its roof is equipped with 19 adjustable slats up to 135°, giving you the ability to adjust the slats' angle according to the weather.

In summer, the roof creates shade while promoting natural ventilation. In case of strong winds, it's possible to close the slats completely. Even better, the bioclimatic pergola offers optimal protection as it remains perfectly waterproof in case of rain.

What Are the Advantages of Our 10x10 ft Bioclimatic Pergola?

Thanks to our expertise, we have been able to develop outdoor arrangements of superior quality. Robust, aesthetic, and efficient, our collection of bioclimatic pergolas presents a host of advantages:

Integrated rainwater evacuation system in the pillars for better drainage;
Easy-to-use opening mechanism thanks to the crank;
Aluminum structure: lightweight, sturdy, and rust-resistant;
Excellent resistance: wind up to 62 mph (approximately 100 km/h) and heavy loads up to 10.2 lbs/sq ft (approximately 50 kg/m²);
Simple and non-demanding maintenance.

Our advice

Thepergola Ombréa 10x10 feet (approximately 3x3 meters) freestanding bioclimatic pergola should be installed on level ground, preferably with a concrete slab.

If you are creating concrete footings, we recommend a dimension of 10 x 10 inches (approximately 25 x 25 cm).

The hardware included in the package for attaching the pergola is intended for solid walls. To install it in hollow concrete blocks, you will need to use Molly bolts, nail-in anchors, or self-drilling anchors.

If you wish to purchase a blind or a slatted panel, we advise you to buy it and mount it at the same time as your pergola, so you can then secure everything to the ground.

In case your pergola is already fixed to the ground, it must be perfectly straight (check with a level) and the posts must be positioned at 90 degrees to be able to add an accessory without any problems.

It is advisable to keep the blades open in winter in case of snowfall and strong winds.

This pergola is likely subject to a building permit application. It is recommended to inquire at your municipality for any necessary procedures.

For a complete pergola tailored to your needs, you can add accessories:

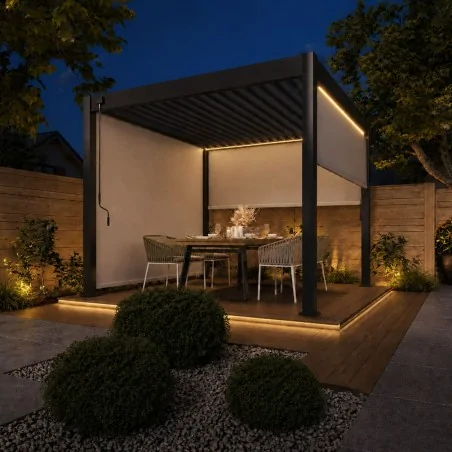

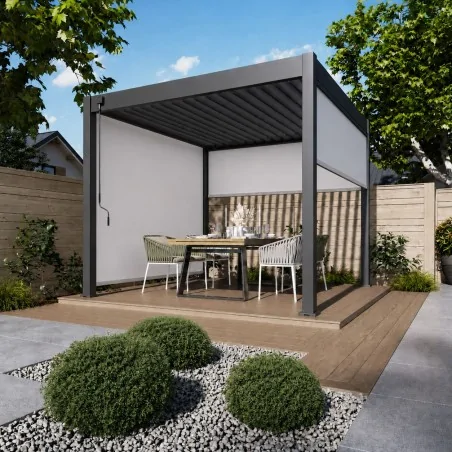

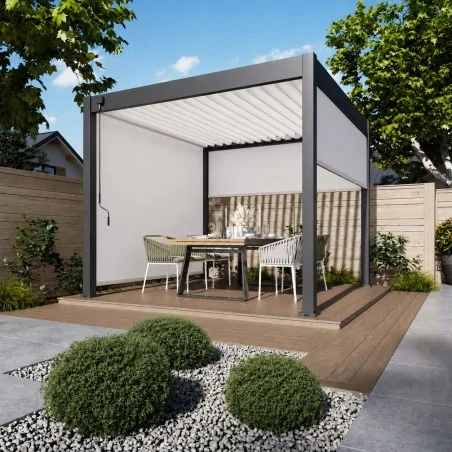

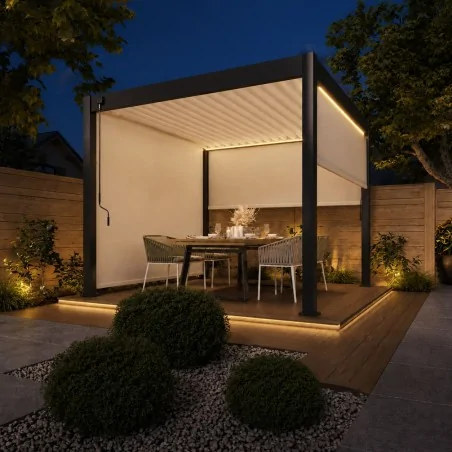

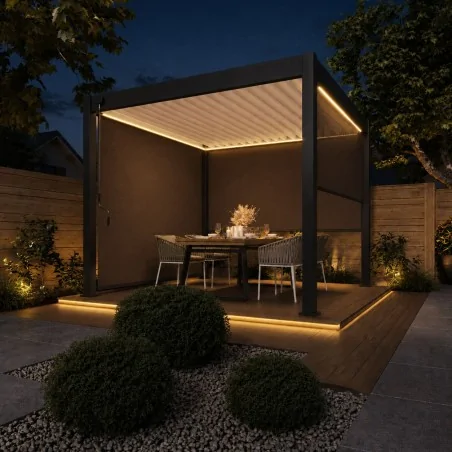

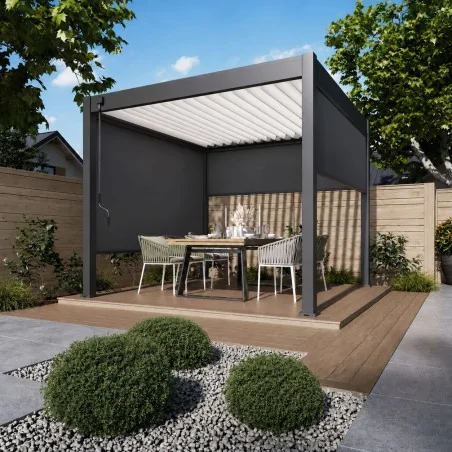

Up to 4 Blinds 10 feet (approximately 3 meters)
Up to 12 slatted panels 3 feet (approximately 1 meter)
Slatted panel 4 feet (for partial closure. This product is available in limited quantity until out of stock.) (approximately 1.2 meters)
Slatted panel 4.3 feet (for partial closure) (approximately 1.3 meters)

Package Information

	Dimensions (LxWxH)	Weight
Package 1 (posts and hardware)	8 feet 8 inches x 10.4 inches x 9.8 inches (approximately 265 x 26.5 x 25 cm)	89.3 lbs (approximately 40.5 kg)
Package 2 (upper frame and hardware)	10 feet 1.2 inches x 10.6 inches x 8.5 inches (approximately 308 x 27 x 21.5 cm)	81.6 lbs (approximately 37 kg)
Package 3 (slats and hardware)	9 feet 11.2 inches x 10.8 inches x 7.5 inches (approximately 302 x 27.5 x 19 cm)	97 lbs (approximately 44 kg)
Package 4 (slats)	9 feet 8.1 inches x 11.8 inches x 7.5 inches (approximately 295 x 30 x 19 cm)	103.6 lbs (approximately 47 kg)
