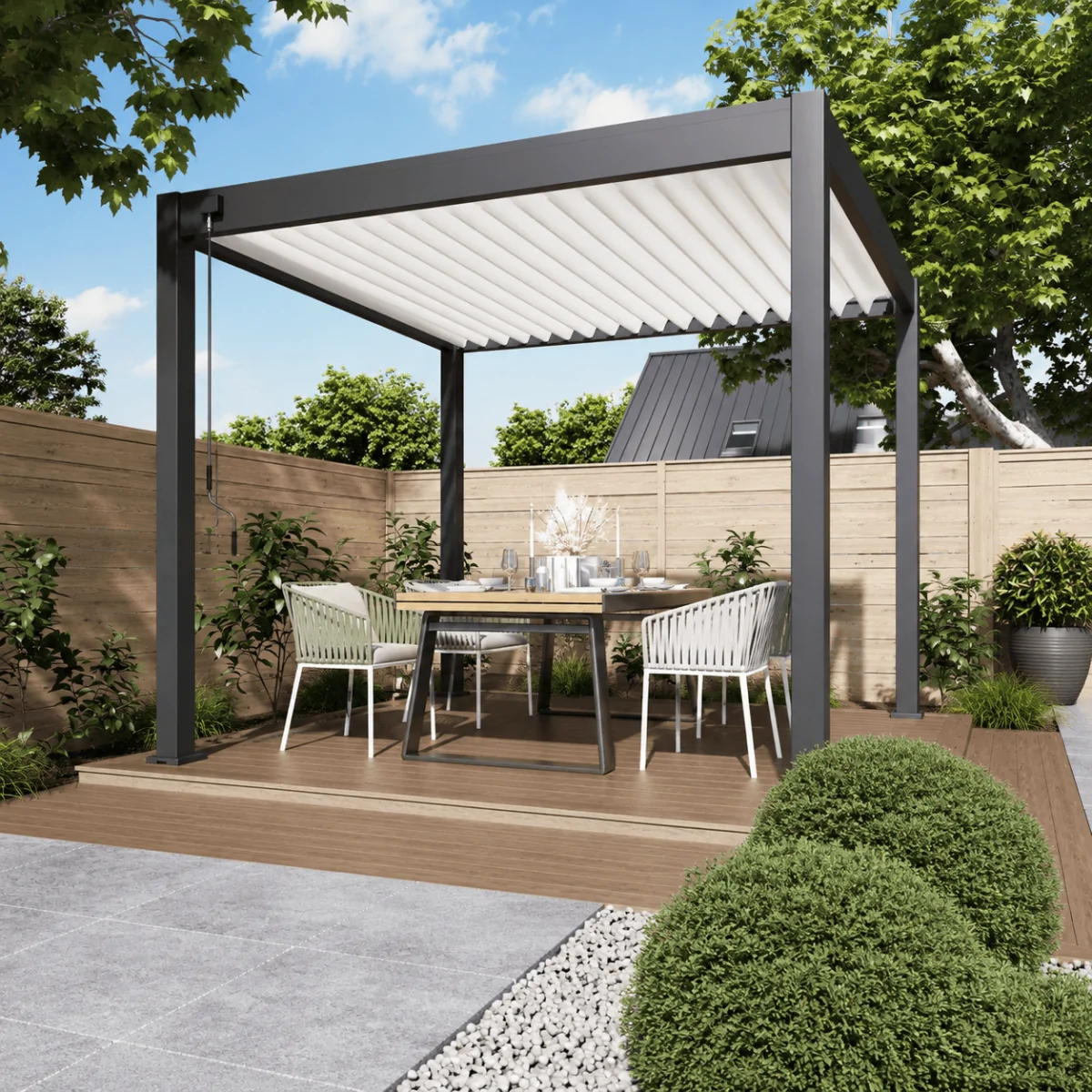

Bicolor Bioclimatic Pergola 10x10 ft (3x3 m) Manual

Ref 15-730359

$3,180.00

Quantity

FREE DELIVERY

in southern Quebec.

Description

```html

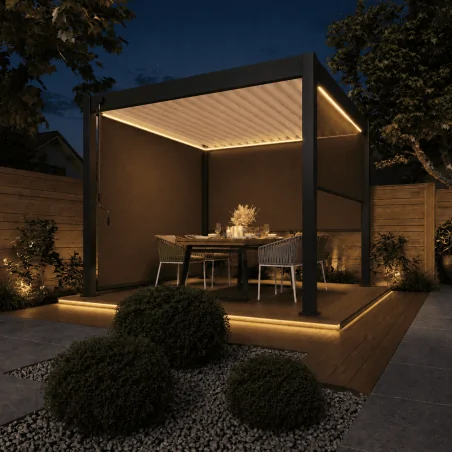

Designed to adapt to weather conditions, the Ombréa® VS 10 feet x 10 feet (3x3M) bioclimatic pergola with adjustable double louvers extends your outdoor season.

It allows you to enjoy the sun or a shaded area while protecting you from the rain. Its fully waterproof roof can be opened or closed thanks to its manually adjustable louvers operated with the crank handle. Water is drained through the posts using an innovative integrated drainage system.

Made of high-quality aluminum, the Ombréa® pergola is an extremely robust product that requires very little maintenance. It is the perfect extension for enjoying your outdoor space, patio, terrace, or for sheltering a Spa & Jacuzzi, while offering a contemporary look.

As a reminder, there are two categories of pergolas: wall-mounted models and freestanding models. While the former must be supported on one side by the building facade, freestanding pergolas are completely independent. As a result, you can install it anywhere to provide shade on the terrace, above an outdoor kitchen, or even over a hammock near the pool.

PRODUCT + FEATURES:

Protects from rain, with a water drainage system inside the posts
Adjustable louvers up to 135° to choose between sun, shade, or light ventilation
Made of high-quality aluminum, robust, lightweight, rustproof, and maintenance-free
Louvers are not visible when opened at 90°

Technical Specifications

Dimensions	9 feet 11 inches x 9 feet 11 inches x 8 feet 5 inches (302 x 302 x 257 cm) Overall dimensions: 10 feet 1 inch x 10 feet 1 inch x 8 feet 5 inches (308 x 308 x 257 cm) Height under pergola: 8 feet 2 inches (248 cm)
Weight	332.9 lbs (151 kg)
Material	Structure and roof: Aluminum Screws and hardware: Stainless steel, galvanized steel, nylon, or plastic
Aluminum thickness	0.055 - 0.071 inch (1.4 - 1.8 mm)
Colors	Color 1: Anthracite grey - RAL 7015 Color 2: White - RAL 9016
Resistance	Wind: 62 mph (100 km/h) Load: 10.2 lbs/ft² (50 kg/m²)
Post dimensions	4.6 x 4.6 inches (11.6 x 11.6 cm)
Beam dimensions	6 x 3 inches (15.3 x 7.5 cm)
Double louver dimensions	9 feet 4 inches x 6.7 inches x 1.2 inches (285 x 17 x 3 cm)
Ground mounting plate dimensions	6.3 x 6.3 inches (16 x 16 cm)
Number of double louvers	19
Warranty	10 years
Information	Pergola ground fixing kit included, 4 screw-in concrete anchors are supplied per post, dimensions: 10x80mm (0.39x3.15 inches) Side screens and louvered panels are sold separately. Photos for illustration purposes only

```

TO LEARN MORE

Why Choose an Ombréa® 10x10 ft (approximately 3x3 m) Bioclimatic Pergola?

Do you want to spend more time outdoors to enjoy sunny days or summer evenings? Consider setting up a 10x10 ft bioclimatic pergola. At Ombréa, you will find the VS collection installation you need. We offer freestanding shelter models measuring 10x10 ft (approximately 3x3 m) that can perfectly adapt to small spaces. Whether installed on the terrace or in a corner of the garden, this arrangement will protect you from the whims of the weather.

10x10 ft Freestanding Bioclimatic Pergola: Its Specifics

The pergola is among the most appreciated outdoor setups. Besides being easy to install, it is also accessible to all budgets. Apart from its affordable purchase price, its installation does not necessarily require a professional. Yet, this setup effectively protects against bad weather and sunlight.

Why Opt for a 10x10 ft Pergola?

The real advantage of our 10x10 ft freestanding pergola lies in its dimensions. Extending 10 ft in length and 10 ft in width, it can cover a floor area of 97 sq ft (approximately 9 m²). This size is perfect for creating an intimate corner or arranging the space of your choice.

Indeed, a 97 sq ft area (approximately 9 m²) is comfortable enough to accommodate a barbecue, a bar, a jacuzzi, or simply a relaxation shelter. It also offers ample space for 4 people to dine around a small table.

Why Set Up a 10x10 ft Bioclimatic Pergola?

Designed to protect you in any season, the 10x10 ft bioclimatic pergola shelters you from climate changes. Its roof is equipped with 19 adjustable slats up to 135°, giving you the ability to adjust the slats' angle according to the weather.

In summer, the roof creates shade while promoting natural ventilation. In case of strong winds, it's possible to close the slats completely. Even better, the bioclimatic pergola offers optimal protection as it remains perfectly waterproof in case of rain.

What Are the Advantages of Our 10x10 ft Bioclimatic Pergola?

Thanks to our expertise, we have been able to develop outdoor arrangements of superior quality. Robust, aesthetic, and efficient, our collection of bioclimatic pergolas presents a host of advantages:

Integrated rainwater evacuation system in the pillars for better drainage;
Easy-to-use opening mechanism thanks to the crank;
Aluminum structure: lightweight, sturdy, and rust-resistant;
Excellent resistance: wind up to 62 mph (approximately 100 km/h) and heavy loads up to 10.2 lbs/sq ft (approximately 50 kg/m²);
Simple and non-demanding maintenance.

Our advice

Thepergola Ombréa 10x10 feet (approximately 3x3 meters) freestanding bioclimatic pergola should be installed on level ground, preferably with a concrete slab.

If you are creating concrete footings, we recommend a dimension of 10 x 10 inches (approximately 25 x 25 cm).

The hardware included in the package for attaching the pergola is intended for solid walls. To install it in hollow concrete blocks, you will need to use Molly bolts, nail-in anchors, or self-drilling anchors.

If you wish to purchase a blind or a slatted panel, we advise you to buy it and mount it at the same time as your pergola, so you can then secure everything to the ground.

In case your pergola is already fixed to the ground, it must be perfectly straight (check with a level) and the posts must be positioned at 90 degrees to be able to add an accessory without any problems.

It is advisable to keep the blades open in winter in case of snowfall and strong winds.

This pergola is likely subject to a building permit application. It is recommended to inquire at your municipality for any necessary procedures.

For a complete pergola tailored to your needs, you can add accessories:

Up to 4 Blinds 10 feet (approximately 3 meters)
Up to 12 slatted panels 3 feet (approximately 1 meter)
Slatted panel 4 feet (for partial closure. This product is available in limited quantity until out of stock.) (approximately 1.2 meters)
Slatted panel 4.3 feet (for partial closure) (approximately 1.3 meters)

Package Information

	Dimensions (LxWxH)	Weight
Package 1 (posts and hardware)	8 feet 8 inches x 10.4 inches x 9.8 inches (approximately 265 x 26.5 x 25 cm)	89.3 lbs (approximately 40.5 kg)
Package 2 (upper frame and hardware)	10 feet 1.2 inches x 10.6 inches x 8.5 inches (approximately 308 x 27 x 21.5 cm)	81.6 lbs (approximately 37 kg)
Package 3 (slats and hardware)	9 feet 11.2 inches x 10.8 inches x 7.5 inches (approximately 302 x 27.5 x 19 cm)	97 lbs (approximately 44 kg)
Package 4 (slats)	9 feet 8.1 inches x 11.8 inches x 7.5 inches (approximately 295 x 30 x 19 cm)	103.6 lbs (approximately 47 kg)
