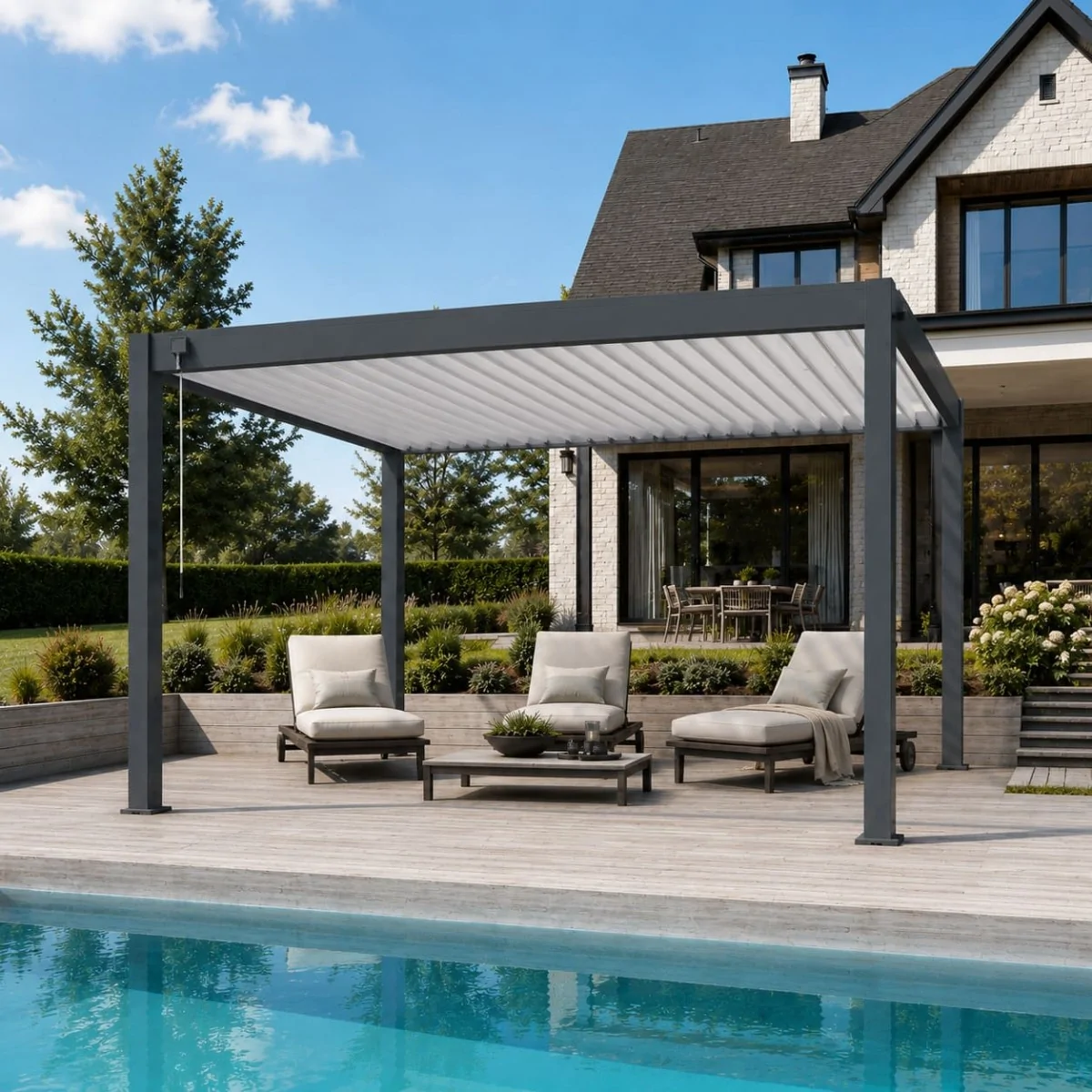

Two-Tone Bioclimatic Pergola, 10x13 ft (3x4 m), Manual

Ref 15-728226
$3,999.00
Delivery included
Excluding special conditions
Color
Quantity

Description

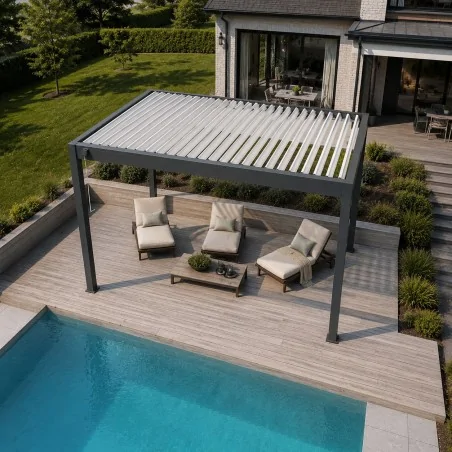

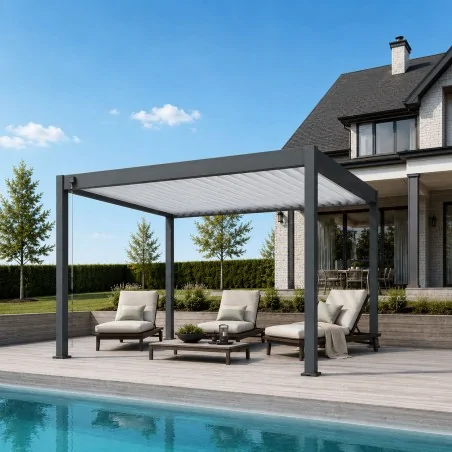

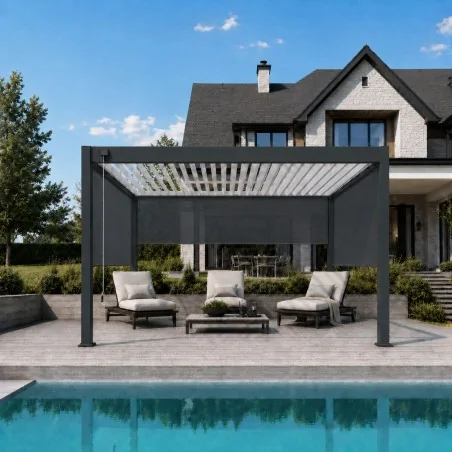

The Ombréa® VS 10x13 bioclimatic pergola boasts a modern design, perfect for integrating with your home and welcoming guests. It is available in 10 colors to match the external joinery of a house or restaurant. Made of aluminum, it is resistant to winds up to 62 mph (100 km/h), making it a high-quality pergola.

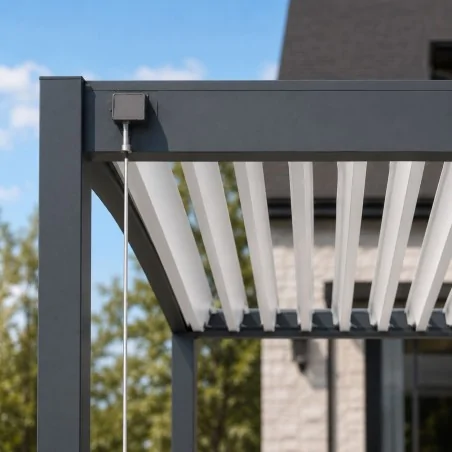

It is possible to adjust the sunlight, shade, or ventilation to avoid oppressive heat, thanks to its double louvres which can be angled up to 135°, controlled by a crank. When open vertically, the louvres are not visible from outside, made possible by extensions on the beams.

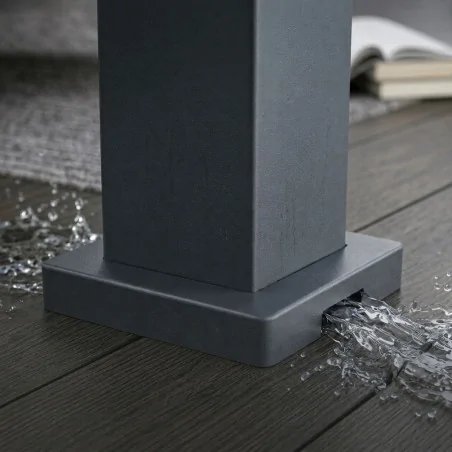

In rainy weather, the area under the pergola remains dry as its roof is completely watertight, with water draining through the posts via an innovative drainage system.

PRODUCT HIGHLIGHTS:

  • Model available in 3 colors
  • Louvres adjustable up to 135° using a crank for shade or sunlight exposure
  • High resistance to weather conditions, water drainage system inside the posts
  • Compatible with a wide range of accessories

Technical Characteristics

Dimensions

12.9 x 9.9 x 8.4 feet (394 x 303 x 257 cm)

Overall: 13 x 9.9 x 8.4 feet (397 x 303 x 257 cm)

Height under pergola: 8.1 feet (248 cm)

Weight 406.75 lbs (184.5 kg)
Material

Structure and roof: Aluminium

Screws and hardware: Stainless steel, galvanized steel, nylon, or plastic

Aluminium thickness 1.4 - 1.8 mm
Colors

Color 1: Anthracite Grey - RAL 7015

Color 2: White - RAL 9016

Color 3: Anthracite Grey and White - RAL 7015 and 9016

Resistance

Wind: 62 mph (100 km/h)

Load: 110 lbs/ft² (50 kg/m²)

Post dimensions 4.6 x 4.6 inches (11.6 x 11.6 cm)
Beam dimensions 6 x 3 inches (15.3 x 7.5 cm)
Double blade dimensions 112.2 x 6.7 x 1.2 inches (285 x 17 x 3 cm)
Ground fixing plate dimensions 6.3 x 6.3 inches (16 x 16 cm)
Number of double blades 25
Warranty 5 years
Information

Pergola ground fixing kit included, 4 concrete screw plugs provided per post, dimensions: 0.39 x 3.15 inches (10 x 80 mm)

Blinds and louver panels are sold separately.

Images are for illustration purposes only.

Learn more

Planning to build a pergola to enjoy your outdoor spaces all year round? Opt for a freestanding bioclimatic pergola of 10x13 ft (3.05x3.96 m) from Ombréa®. Ideal for creating a relaxing corner sheltered from the sun and weather, this installation also contributes to protection against climate changes.



What is a freestanding bioclimatic pergola of 10x13 ft (3.05x3.96 m)?

Also called freestanding pergola or island pergola, the freestanding pergola is an open shelter consisting of at least four posts.



Introducing the freestanding pergola of 10x13 ft (3.05x3.96 m)

The freestanding pergola is a structure supported by four legs directly fixed to the ground. Unlike a pergola attached to a house wall, this island shelter is completely independent. You can therefore install it anywhere on your property to shelter a terrace, shelter a hammock near the pool or create a cozy space in the middle of the garden.



Due to the presence of pillars, a freestanding pergola is particularly suitable for large spaces. With dimensions of 10x13 ft (3.05x3.96 m), the structure can cover an area of about 161 sq ft (15 m²). You will therefore have enough space to move around a table, to install a garden lounge or to frequently receive guests. For your information, the installation of a pergola of 10x13 ft (3.05x3.96 m) is subject to a preliminary declaration to your city hall.



Why install a freestanding bioclimatic pergola?

To improve the comfort of your living space, opt for a freestanding bioclimatic pergola of 10x13 ft (3.05x3.96 m). Allowing you to enhance your real estate value through its many configurations, this structure offers a multitude of customizations and options. Moreover, its manufacturing material in aluminum guarantees a robustness and excellent longevity.



Its biggest advantage? The bioclimatic pergola is equipped with a roof with adjustable louvres that effectively protects you against weather conditions. In winter, you can close them completely, creating a shelter against rain and wind. In summer, the angle can be adjusted to provide a shaded area while promoting natural ventilation. Even better, it is possible to automate the opening/closing of the louvres based on the weather.



Our VS collection of freestanding bioclimatic pergolas of 10x13 ft (3.05x3.96 m)

The products offered by the Ombréa® brand are recognized for their unique design, but also their high resistance to outdoor conditions. Delivered in kit form, with fixing accessories, our freestanding bioclimatic pergolas of 10x13 ft (3.05x3.96 m) are quite simple to assemble. If necessary, our team can help with the assembly.



Product Characteristics

Made of aluminum, the structure of the bioclimatic pergola is particularly resistant to corrosion. In addition to requiring minimal maintenance, this material is also renowned for its robustness. Thus, your installation will be able to support a load of 50 kg/m² or withstand winds of up to 100 km/h.



In addition to a modern and elegant design, this collection offers you the choice between 10 colors so that the pergola perfectly integrates with the external joinery. If you opt for this freestanding bioclimatic pergola of 10x13 ft (3.05x3.96 m), ensure that its dimensions fit the configuration of your house:

  • 12.92 ft long (3.94 m)

  • 9.94 ft wide (3.03 m)

  • 8.4 ft deep (2.56 m)

  • 7.74 ft height under the pergola (2.36 m)



The benefits of our bioclimatic pergola of 10x13 ft (3.05x3.96 m)

By opting for our high-quality products, you benefit from a number of advantages:

  • 25 adjustable double blades controlled by a crank;

  • orientation of the blades up to 135° to adjust the sunlight or ventilation

  • 100% waterproof roof with an integrated water drainage system in the posts;

  • 5-year warranty with responsive after-sales service in case of defective parts.

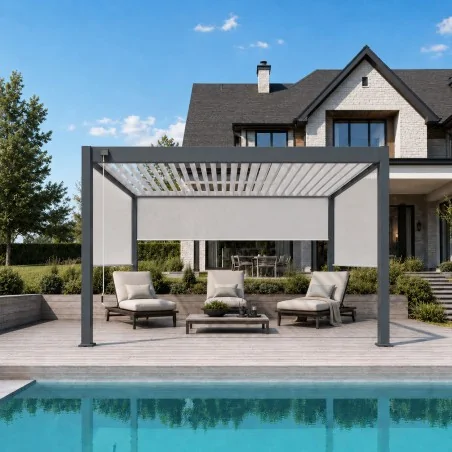

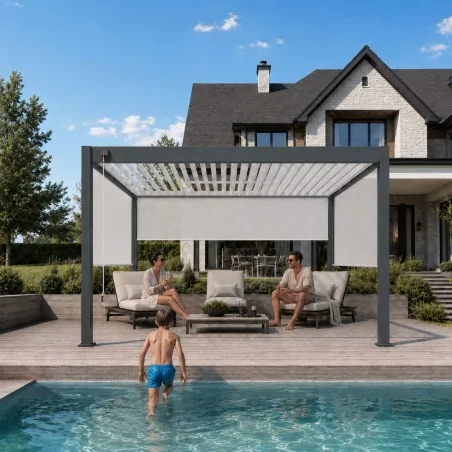

Finally, please note that the pergolas offered in this VS collection are compatible with a wide range of accessories, especially if you want to partially close your living space: blinds, louver panels, etc.

Our advice

The Ombréa 10x13 ft (3x4 m) bioclimatic pergola must be mounted on level ground, preferably with a concrete slab.

If you are creating concrete pads, we recommend a size of 10 x 10 in (25 x 25 cm).



If you wish to buy an awning or a louvre panel, we advise you to buy it and assemble it at the same time as your pergola; you can then fix everything to the ground.

If your pergola is already fixed to the ground, it must be perfectly straight (check using a level) and the posts must be positioned at 90° to be able to add an accessory without inconvenience.



It is advisable to keep the slats open in winter in case of snowfall and strong winds.



This pergola may require a work permit application. It is recommended to contact your municipal office for possible procedures.



For a complete pergola adapted to your needs, you can add accessories:



  • Up to 2 10 ft (3 m) Blinds
  • Up to 2 13 ft (4 m) Blinds
  • Up to 6 3 ft (1 m) louvered panels
  • Up to 6 4 ft 3 in (1.3 m) louvered panels
  • 4 ft (1.2 m) louvre panel (for partial closure. This product is available in limited quantities until out of stock.)

Package Information

Dimensions (LxWxH) Weight
Package 1 (posts and hardware)

104.3 x 10.4 x 9.8 in (265 x 26.5 x 25 cm)

89.3 lb (40.5 kg)

Package 2 (upper frame and hardware)

153.5 x 10.6 x 8.5 in (390 x 27 x 21.5 cm)

90.4 lb (41 kg)

Package 3 (blades and hardware)

118.9 x 14.0 x 7.5 in (302 x 35.5 x 19 cm)

132.3 lb (60 kg)

Package 4 (blades)

118.9 x 14.0 x 7.5 in (302 x 35.5 x 19 cm)

138.9 lb (63 kg)
